Forming Process: Hot Die Forging / Sand Casting + Heat Treatment + Shot Blasting + CNC Precision Machining & Grinding
Available Materials: Alloy steel, High chromium cast iron, Indefinite chill cast iron, Forged steel, etc., customizable according to drawings
Precision Control: Dimensional tolerance of roll body and journal ≤ ±0.05mm, surface roughness Ra1.6~Ra0.8, roundness and cylindricity meeting rolling mill requirements
Performance Advantages: Dense metal structure, excellent wear resistance, impact resistance, high temperature resistance, long service life, stable rolling performance
Customization Service: Support customizing dimensions, structure and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report

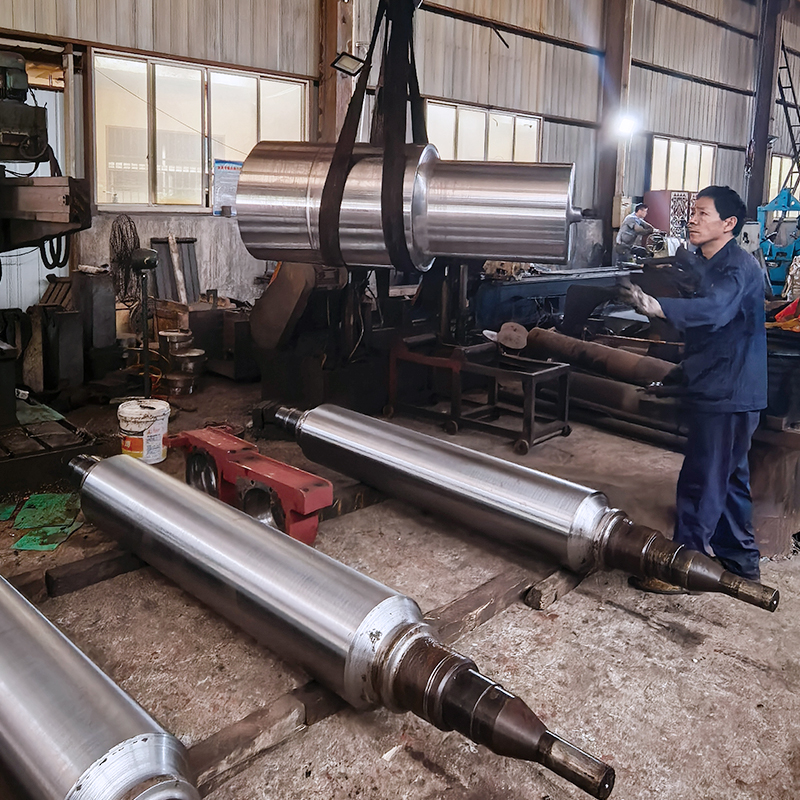

Step into the heart of modern metallurgy, where the rhythmic, thunderous roar of a heavy-duty rolling mill demands components that refuse to yield. Our large steel rolling mill rolls are born from the intense heat of the forge and the surgical precision of advanced CNC machining, resulting in a tactile masterpiece of industrial engineering. When you run your hand along the meticulously ground journal, you feel the flawless, mirror-like finish—a testament to our uncompromising surface roughness standards. These rolls are not just massive cylinders of steel; they are the critical interface that dictates the absolute flatness, gauge consistency, and immaculate surface quality of your final rolled sheets and profiles. The faint scent of specialized cutting fluids from the final grinding phase lingers slightly on the pristine metal, signaling a component that has just passed through the most rigorous shaping processes known to modern manufacturing.
By integrating deep-penetration heat treatments with superior alloy compositions, we have crafted mill rolls that emit a distinct, ringing resonance of solid, defect-free metal when struck. They are engineered to conquer the blistering heat of hot strip mills and the immense compressive forces of cold reduction without succumbing to thermal fatigue, micro-cracking, or premature spalling. Every rotation of these massive forged and cast rolls translates into minimized operational downtime and drastically reduced roll-changing frequencies. By eliminating the unpredictable variables of equipment failure, these rolls ensure a seamless, uninterrupted production campaign that elevates your operational throughput, protects your downstream product quality, and maximizes the return on your heavy machinery investments.
The technical parameters of our large steel rolling mill rolls are strictly monitored at every stage of the manufacturing process. From the initial melting of the raw alloys to the final CNC grinding of the roll body, our engineering team ensures that every dimension, material property, and surface finish aligns perfectly with the rigorous demands of modern rolling mills. The data presented below reflects the exact specifications and capabilities we guarantee for our large casting and forging components, ensuring seamless integration into your specific equipment architecture.
| Parameter Category | Specification Details |
|---|---|
| Product Name | Large Steel Rolling Mill Rolls And Large Casting And Forging |
| Forming Process | Hot Die Forging / Sand Casting + Heat Treatment + Shot Blasting + CNC Precision Machining & Grinding |
| Available Materials | Alloy steel, High chromium cast iron, Indefinite chill cast iron (ICDP), Forged steel, High-speed steel (HSS), Tungsten carbide, etc. (customizable according to drawings) |
| Precision Control | Dimensional tolerance of roll body and journal ≤ ±0.05mm, surface roughness Ra1.6~Ra0.8, roundness and cylindricity meeting rolling mill requirements |
| Performance Advantages | Dense metal structure, excellent wear resistance, impact resistance, high temperature resistance, thermal cracking resistance, long service life, stable rolling performance |
| Customization Service | Support customizing dimensions, structure and materials according to customer's 2D/3D drawings |
| Quality Inspection | Provide a full set of quality inspection documents such as material certificate, heat treatment report and 100% non-destructive testing (NDT) report |
| Applicable Equipment | Hot continuous rolling mills, cold continuous rolling mills, medium and heavy plate mills, section steel mills, aluminum foil mills, etc. |
| Applicable Roll Types | Work Rolls, Backup Rolls, Intermediate Rolls, Vertical Rolls |
No two rolling mills operate under the exact same conditions. Variations in mill design, product mix, reduction schedules, and cooling systems require tailored solutions. We possess the engineering depth to transform your specific challenges into customized, high-performance roll designs that integrate seamlessly into your unique setup.
Full Drawing Compliance: Expert engineering teams capable of translating your complex 2D and 3D CAD models into precise manufacturing realities.
Comprehensive Roll Types: Supplying the full spectrum of mill rolls, including high-hardness Work Rolls, massive load-bearing Backup Rolls, Intermediate Rolls, and Vertical Edger Rolls.
Cross-Industry Adaptability: Proven performance across diverse applications, from heavy plate mills and section steel mills to high-speed cold continuous mills and delicate aluminum foil mills.
Custom Journal Designs: Machining specialized keyways, splines, and bearing fits to match your exact drive train and chock configurations.
Material Optimization Consulting: Collaborating with your engineering team to upgrade legacy roll materials to modern, high-performance alloys for improved efficiency.
Procuring large mill rolls is a significant investment, and the true value of that investment is measured by the Total Cost of Ownership (TCO). We partner with our clients to ensure that our products not only perform exceptionally but also drive down the overall cost per ton of steel rolled through extended lifespans and expert technical backing.
Lowering Tonnage Costs: The extended wear life of our rolls directly reduces the frequency of replacements and the associated costs of new roll procurement.
Minimizing Maintenance Downtime: Fewer roll changes mean more hours of active, profitable production for your facility.
Optimized Regrinding Cycles: The uniform hardness depth of our rolls allows for multiple regrinds without losing performance, maximizing the usable life of the asset.
Expert Grinding Guidance: Providing technical recommendations on grinding wheel selection, feed rates, and cooling practices to help your roll shop maintain the rolls perfectly.
Lifecycle Performance Tracking: Offering ongoing technical consultation to analyze roll wear patterns and continuously refine material selections for future campaigns.
Selecting a partner for heavy metallurgical components requires absolute trust in their manufacturing capabilities, engineering expertise, and commitment to quality. We have built our reputation on delivering uncompromising reliability to the most demanding industrial facilities worldwide. When you source your large casting and forging components from us, you are securing a competitive advantage rooted in superior metallurgy and precision engineering.
Decades of Metallurgical Expertise: Our engineering team possesses deep, specialized knowledge in the behavior of complex alloys under extreme rolling conditions.
End-to-End Manufacturing Control: By managing every step from melting to final CNC machining in-house, we maintain absolute authority over product quality and lead times.
Unwavering Commitment to Precision: Our investment in state-of-the-art multi-axis machining centers ensures that even the most massive components are finished to microscopic tolerances.
Global Supply Chain Reliability: We have a proven track record of securely packaging and delivering massive, heavy-tonnage components to facilities around the world, on schedule.
Dedicated Engineering Support: We don't just deliver a product; we provide a partnership, offering continuous technical consultation to optimize your rolling operations.
We understand that specifying and procuring large steel rolling mill rolls involves complex engineering considerations. Below, we address some of the most critical questions raised by facility managers and metallurgical engineers regarding our manufacturing capabilities and product performance.
How do you ensure the internal soundness of large forged backup rolls?
We utilize a combination of high-reduction hot die forging to close any internal voids, followed by 100% ultrasonic testing (UT) using advanced phased-array techniques. This ensures the entire volume of the roll is completely free from internal flaws, guaranteeing structural integrity under massive loads.
What specific information is required to manufacture a custom mill roll?
To ensure perfect fit and performance, we require detailed 2D or 3D engineering drawings specifying all dimensions, tolerances, and surface finish requirements. Additionally, information regarding the target hardness profile, preferred material (if known), and the specific operating conditions of the mill (hot/cold, materials being rolled) helps us optimize the final product.
Can you achieve specific hardness depth profiles for work rolls?
Absolutely. Through highly controlled induction hardening and specialized quenching techniques, we can tailor the depth of the hardened working layer to your exact specifications. This ensures the roll maintains its wear resistance through multiple regrinding cycles while keeping a tough, ductile core to absorb impact.
How do your Indefinite Chill Cast Iron (ICDP) rolls perform in hot strip mill finishing stands?
Our ICDP rolls are specifically engineered for these demanding environments. The finely dispersed graphite in the microstructure acts as a natural lubricant and absorbs thermal expansion, providing exceptional resistance to thermal fatigue, fire cracking, and spalling, resulting in an excellent surface finish on the rolled strip.
What kind of documentation accompanies the delivery of large casting and forging components?
Every component is delivered with a comprehensive quality dossier. This includes a detailed material certificate verifying the chemical composition, a heat treatment report outlining the thermal cycles, dimensional inspection reports, and complete non-destructive testing (NDT) certifications, ensuring total traceability and compliance.
Do you provide guidance on the regrinding process for your high-speed steel (HSS) rolls?
Yes, HSS rolls require specific grinding protocols due to their extreme hardness and complex carbide structures. Our technical support team provides detailed recommendations on grinding wheel specifications, speeds, feeds, and coolant application to prevent grinding cracks and ensure the roll surface is perfectly restored.
