When operating in environments where temperatures routinely exceed the melting points of standard metals, structural failure is simply not an option. Superalloy precision castings offer the ultimate metallurgical safeguard, providing an exceptional balance of mechanical strength, thermal stability, and uncompromising corrosion resistance. Running your fingers along the surface of these components reveals a flawless, near-net-shape finish, a direct testament to the rigorous vacuum casting protocols employed during their creation. The dense, weighty feel of the nickel and cobalt-based alloys speaks volumes about their inherent durability, designed specifically to withstand immense centrifugal forces and aggressive oxidative atmospheres without yielding. By integrating these advanced castings into your engineering projects, you effectively eliminate the vulnerabilities associated with multi-part welded assemblies. The seamless, unified structure reduces potential points of failure, mitigates the risk of stress fractures, and significantly extends the operational lifespan of critical machinery. Whether deployed in the heart of an aerospace engine or deep within an industrial gas turbine, these components ensure that your operations run continuously, safely, and with maximum efficiency. This uncompromising approach to metallurgical excellence ultimately drives down long-term maintenance expenditures, prevents catastrophic system downtimes, and elevates the overall reliability of your most vital mechanical assets.
| Specification Category | Technical Details & Parameters |
|---|---|
| Product Name | Superalloy Precision Castings |
| Product Range |
|
| Common Materials | Nickel-based (Inconel 718/713c, Hastelloy X, Rene 80, etc.), Cobalt-based alloys, Iron-based alloys |
| Casting Processes | Lost Wax Investment Casting, Vacuum Casting |
| Machining Capabilities | 3-Axis / 5-Axis CNC Machining |
| Dimensional Tolerance | ±0.1 mm (or ±0.005 in/in) |
| Surface Roughness | Ra 3.2-6.3 µm (Polishing and post-processing can achieve up to Ra 1.6 µm / 125 RMS) |
| Minimum Wall Thickness | Down to 0.5 mm |
| Post-Processing | Hot Isostatic Pressing (HIP), Heat Treatment (T6, etc.), Surface Sandblasting / Polishing |
| Quality Inspection | Nondestructive Testing (X-ray, Ultrasonic, Fluorescent Penetrant Inspection), Destructive Testing (Tensile, Yield, Hardness), Coordinate Measuring Machine (CMM) |
| Industry Certifications | ISO 9001:2015, AS9100, Nadcap, CE |
Our casting solutions are meticulously engineered to solve complex assembly challenges and enhance the thermodynamic efficiency of heavy-duty machinery. By utilizing advanced lost-wax and vacuum techniques, we transform intricate digital designs into solid, high-performance metallic realities. The following product range highlights our core manufacturing capabilities:

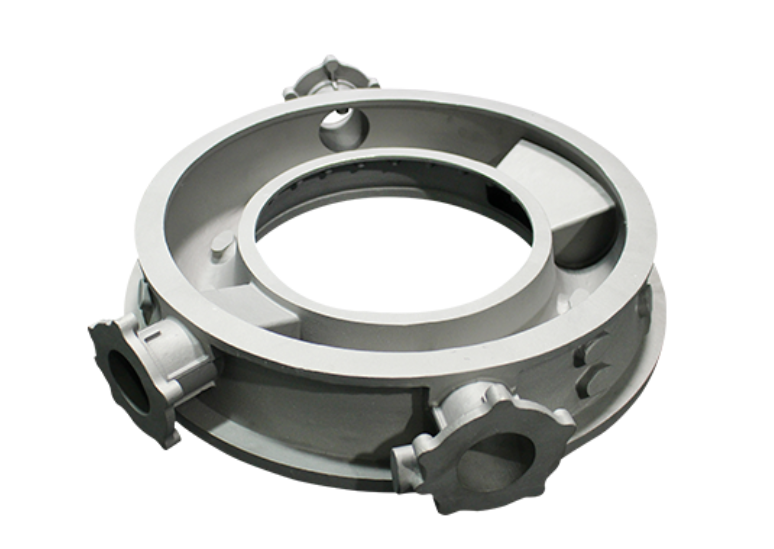

large, complex thin-walled structures such as casings: Engineered to provide robust housing while minimizing overall equipment weight.
turbine rotating and guide blades: Cast with precision to ensure optimal aerodynamic performance and rotational balance under extreme stress.
integrally bladed disks (blisks): Seamlessly unified components that eliminate the need for mechanical blade attachment, reducing weight and fatigue points.
vanes: Designed to direct high-velocity gas flows with minimal turbulence and maximum thermal resistance.
diffusers: Crafted to exact geometric specifications to efficiently convert kinetic energy into pressure energy within turbine systems.
Material selection is the foundation of operational safety in high-stress applications. We utilize premium vacuum-melted superalloys, including Inconel, Hastelloy, and Rene, which are specifically formulated to maintain their molecular integrity when subjected to extreme conditions. These materials provide exceptional creep resistance, oxidation resistance, and anti-corrosive properties, ensuring that turbine blades and casings remain structurally stable under temperatures reaching up to 1200°C (2000°F) and immense mechanical loads. This exceptional material science translates directly into longer component lifespans and reduced replacement frequencies.
Utilizes top-tier nickel, cobalt, and iron-based vacuum-melted alloys
Maintains structural stability and prevents deformation at 1200°C (2000°F)
Delivers superior resistance to thermal creep and high-velocity oxidation
Significantly extends the operational lifecycle of critical engine components
Reduces the frequency of maintenance shutdowns in power generation facilities
Modern engineering demands components that are both incredibly strong and remarkably light. Leveraging state-of-the-art vacuum investment casting, we specialize in forming large, intricate structures and ultra-thin walls down to 0.5 mm. This capability allows for the precise realization of complex internal cooling channels, which are vital for thermal management in aerospace and gas turbine applications. Achieving a near-net-shape directly from the mold provides a highly efficient, lightweight solution that pushes the boundaries of thermodynamic design.
Achieves ultra-thin wall thicknesses down to 0.5 mm without compromising strength
Enables the creation of intricate internal cooling channels for advanced thermal management
Produces near-net-shape components that require minimal secondary alteration
Facilitates the manufacturing of complex integrally bladed disks (blisks)
Provides crucial lightweighting solutions for fuel-efficient aerospace applications
Dimensional accuracy is critical when components must integrate flawlessly into complex, high-speed rotating assemblies. Our casting process strictly controls dimensional tolerances to within ±0.1 mm (±0.005 in/in), ensuring a perfect fit upon installation. Furthermore, the as-cast surface roughness is maintained at an impressive Ra 3.2-6.3 µm, which can be further refined to Ra 1.6 µm. This extreme precision drastically reduces the need for expensive and time-consuming secondary CNC machining on difficult-to-cut superalloys, thereby lowering overall production costs and minimizing material waste.
Maintains strict dimensional tolerances of ±0.1 mm (±0.005 in/in)
Delivers an exceptional as-cast surface roughness of Ra 3.2-6.3 µm
Post-polishing capabilities achieve ultra-smooth finishes up to Ra 1.6 µm (125 RMS)
Dramatically reduces the necessity for costly secondary machining processes
Minimizes material waste of expensive, high-grade superalloys
Trust in critical components is built upon verifiable data and rigorous inspection protocols. We have established a comprehensive, fully traceable quality control system that mandates 100% internal inspection for every component before it leaves our facility. Our testing regimen includes advanced Nondestructive Testing (NDT) such as X-ray imaging, ultrasonic scanning, and fluorescent penetrant inspection (FPI). Combined with Hot Isostatic Pressing (HIP) to eliminate microscopic shrinkage and internal porosity, we guarantee that every vane and diffuser achieves true aerospace-grade structural integrity.
Implements a fully traceable, end-to-end quality management system
Conducts 100% internal inspection using advanced diagnostic equipment
Utilizes X-ray, ultrasonic, and fluorescent penetrant NDT methods
Applies Hot Isostatic Pressing (HIP) to eradicate internal microscopic voids
Performs rigorous destructive testing including tensile, yield, and hardness evaluations
Meeting the stringent regulatory demands of high-stakes industries is at the core of our operational philosophy. Our manufacturing facilities strictly adhere to international standards, proudly maintaining ISO 9001:2015 certification for our quality management systems. Furthermore, we comply with the exacting AS9100 standards for aerospace manufacturing and hold Nadcap accreditation for special processes. This comprehensive compliance framework ensures that our products fully satisfy the rigorous procurement requirements of the military, aviation, maritime, and power generation sectors.
Operates under a certified ISO 9001:2015 Quality Management System
Fully compliant with AS9100 standards for aerospace and defense applications
Holds Nadcap accreditation for specialized metallurgical processes
Meets CE certification requirements for European market integration
Ensures total regulatory compliance for demanding industrial procurement standards
Streamlining your supply chain is essential for maintaining project timelines and controlling costs. We offer comprehensive, end-to-end OEM and ODM services, taking your project from initial 3D printed rapid prototypes and mold design all the way through vacuum casting, 5-axis CNC precision machining, and final surface treatments. By consolidating multiple welded parts into a single, highly engineered casting, we simplify your assembly process. This one-stop approach delivers plug-and-play components directly to your assembly line, significantly accelerating your time-to-market.
Provides complete end-to-end OEM/ODM manufacturing services
Offers rapid prototyping via advanced 3D printing and custom mold design
Features state-of-the-art 3-axis and 5-axis CNC precision machining capabilities
Transforms complex multi-part assemblies into single, unified castings
Delivers finished, plug-and-play components to shorten supply chain cycles
Partnering with a reliable manufacturer is crucial for the success of your high-stakes engineering projects. We bring decades of metallurgical expertise, cutting-edge vacuum casting technology, and an unwavering commitment to quality assurance to every project we undertake. Our dedicated engineering team works closely with your designers to optimize component geometry for manufacturability, ensuring that you receive the highest performance parts at the most efficient production costs. We are not just a supplier; we are your strategic partner in pushing the boundaries of industrial capability.
Decades of specialized expertise in high-temperature alloy metallurgy
State-of-the-art vacuum investment casting and CNC machining facilities
Collaborative engineering support to optimize designs for manufacturability
Proven track record of delivering defect-free components on strict deadlines
Dedicated to reducing your total cost of ownership through process efficiency
Robust global logistics network ensuring secure and timely delivery
To assist our industrial partners and engineering clients in making informed procurement decisions, we have compiled answers to the most common technical inquiries regarding our superalloy precision castings. If your specific engineering requirements are not addressed below, our technical support team is readily available for detailed consultations.
What is the maximum operating temperature these superalloy components can withstand?
Our castings, particularly those manufactured from nickel-based alloys like Inconel 718 and Rene 80, are engineered to maintain their structural integrity and resist creep in extreme environments, effectively withstanding continuous operating temperatures up to 1200°C (2000°F).
How does Hot Isostatic Pressing (HIP) improve the structural integrity of the castings?
Hot Isostatic Pressing subjects the cast components to elevated temperatures and extreme inert gas pressure simultaneously. This process effectively collapses and seals any internal microscopic porosity or shrinkage voids, significantly enhancing the fatigue life, ductility, and overall mechanical strength of the alloy.
Can you achieve complex internal cooling channels within the turbine blades?
Yes. By utilizing advanced lost-wax investment casting techniques combined with specialized ceramic cores, we can precisely form intricate, serpentine internal cooling passages. These channels are critical for allowing cooling air to flow through the blades, preventing thermal degradation during operation.
What nondestructive testing (NDT) methods are applied before delivery?
We employ a rigorous, multi-tiered NDT approach. This includes X-ray radiography to inspect for internal anomalies, ultrasonic testing to gauge material density and hidden flaws, and Fluorescent Penetrant Inspection (FPI) to detect any microscopic surface-breaking defects, ensuring 100% reliability.
How do you ensure dimensional accuracy for near-net-shape components?
Dimensional accuracy is maintained through strict control of the wax injection process, precise ceramic shell building, and controlled cooling rates during vacuum casting. Post-casting, we verify all critical dimensions using highly calibrated Coordinate Measuring Machines (CMM) to ensure tolerances of ±0.1 mm are strictly met
