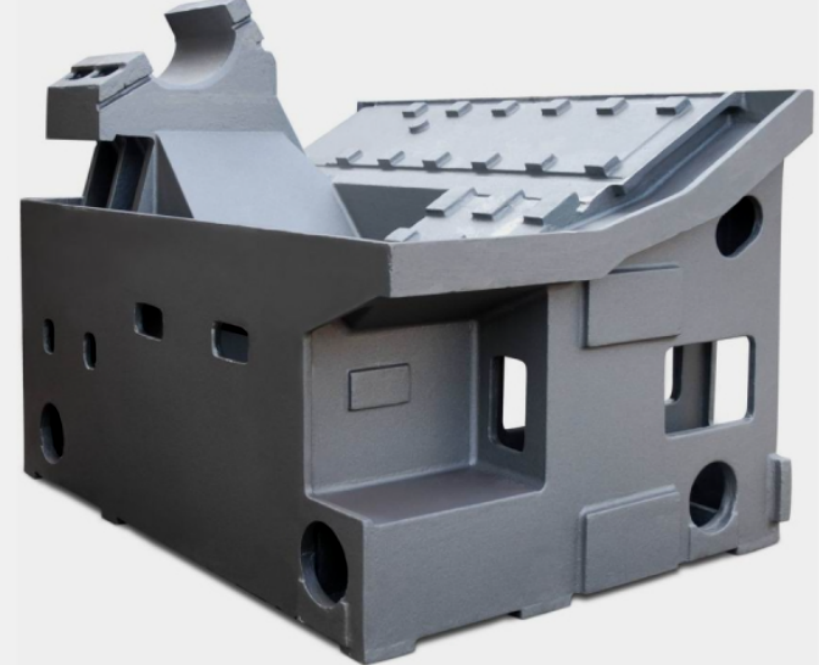

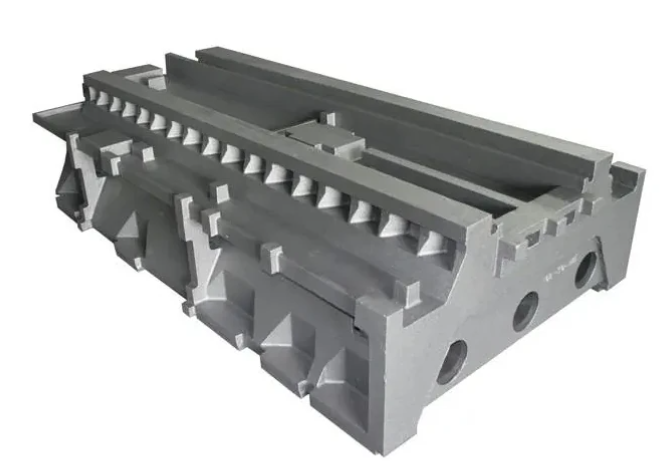

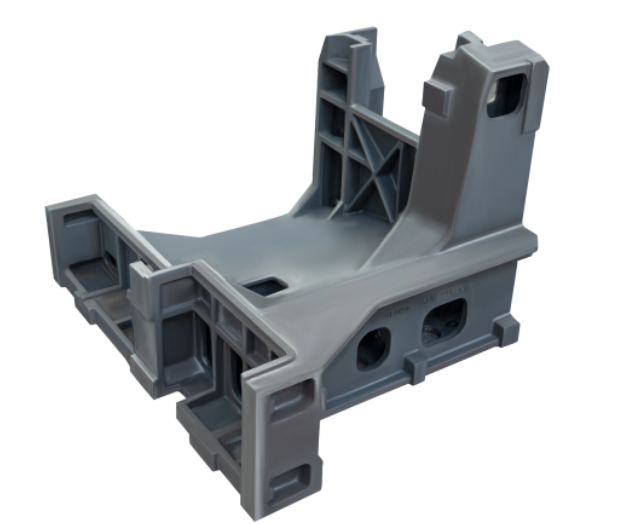

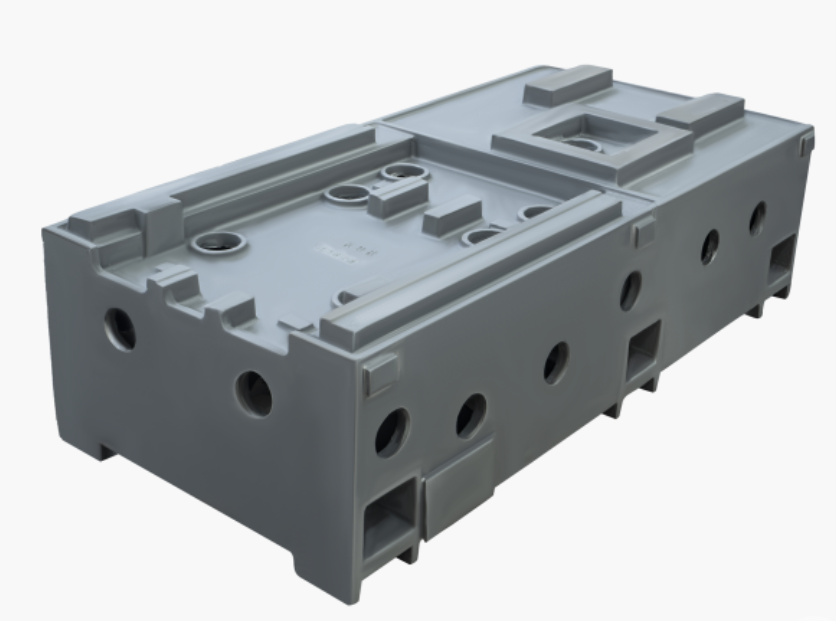

The foundation of any high-performance industrial machinery lies entirely in its structural integrity. Our machine tool castings are meticulously engineered to form the unyielding backbone of advanced manufacturing equipment. When you run your hands along the surface of these heavy-duty components, you can immediately feel the dense, cold, and ultra-smooth finish achieved through rigorous machining and premium surface treatments. The sheer weight and solid metallic resonance of the cast iron signify an exceptional capacity to absorb high-frequency vibrations during intense cutting operations. Visually, the flawless geometric contours and exactingly milled mounting surfaces reflect a commitment to absolute precision.
These castings do not merely support your machinery; they actively enhance operational accuracy by preventing micro-deformations under immense thermal and mechanical stress. By integrating these robust components into your production lines, you significantly reduce maintenance downtime and elevate the overall output quality of your industrial equipment. The distinct lack of internal porosity ensures that every single component performs flawlessly under the most demanding workshop conditions, offering a tactile sense of reliability that operators and engineers can trust implicitly.
| Product Name | Machine Tool Castings |
|---|---|
| Product Range |
|
| Common Materials | Gray Iron, Ductile Iron, Carbon Steel, Stainless Steel, Aluminum Alloy |
| Casting Processes | Sand casting (Resin sand / Clay sand / Green sand), Investment casting (Lost wax), Thermal gravity casting |
| Machining Capabilities | CNC machining center, Turning, Milling, Grinding, EDM |
| Machining Precision | ±0.01mm - ±0.02mm (Customized according to drawings) |
| Surface Treatment | Polishing, Sandblasting, Shot blasting, Anti-rust oil, Painting, Electrophoresis, Chrome plating, Galvanizing |
| Quality Certification | ISO 9001:2015 |
| Testing Equipment | Coordinate Measuring Machine (CMM), Spectrometer, Hardness tester, Universal testing machine, X-ray flaw detector |
Upgrading your industrial equipment requires components that actively contribute to the efficiency and longevity of the entire system. Our castings are designed to solve the most persistent challenges in heavy machinery operation, transforming raw metal into a strategic asset for your production capabilities.
Superior Vibration Dampening: The inherent graphite structure within our premium gray and ductile iron acts as a natural shock absorber. This dramatically reduces chatter during high-speed tooling, resulting in a quieter operational sound and a visibly smoother finish on your final manufactured goods.
Thermal Distortion Resistance: Heavy machinery generates intense heat. Our metallurgical compositions are specifically balanced to dissipate thermal energy rapidly, preventing the microscopic warping that typically ruins calibration in standard structural parts.
Ready-to-Assemble Delivery: By handling both the initial pour and the micro-precision finishing in-house, we deliver components that slide perfectly into your assembly workflow. The exactness of the milled edges means your technicians spend zero time on secondary modifications.
Extended Tooling Lifespan: Because our bases and columns provide an immovable foundation, the cutting tools attached to your machinery experience significantly less lateral deflection. This subtle stability translates directly into prolonged tool life and reduced consumable costs.
Addressing the extreme stability requirements of industrial machine tools, we source and pour only the highest grade of gray iron, ductile iron, and high-strength steel. The physical properties of these materials are immediately apparent in their formidable weight and rock-solid tactile feedback. These castings possess extraordinary shock absorption, wear resistance, and compressive strength. By effectively neutralizing the intense vibrations generated during high-speed cutting and heavy-load operations, these materials guarantee long-term dimensional stability and exceptional structural rigidity for your equipment.
Optimized graphite flake distribution for maximum acoustic and kinetic dampening
High tensile strength ductile iron options for components subjected to severe mechanical stress
Strict metallurgical control ensuring uniform density without brittle zones
The journey from molten metal to a flawless structural component relies on our mastery of advanced foundry techniques. Utilizing a sophisticated combination of resin sand, clay sand, and precision investment casting (lost wax), we engineer highly scientific gating and pouring systems. This meticulous fluid dynamics control completely eliminates internal defects such as gas porosity, shrinkage cavities, and sand inclusions. Whether we are pouring a massive, multi-ton slanting bed lathe or an intricately detailed bearing pedestal, the resulting visual and structural integrity is pristine.
Resin sand molding for exceptionally smooth as-cast surface finishes
Advanced thermal gravity techniques to ensure complete mold filling for complex geometries
Zero-defect internal structures verified by rigorous non-destructive testing
We provide a comprehensive, turnkey solution that bridges the gap between raw foundry output and final assembly. Our facility is equipped with state-of-the-art multi-axis CNC machining centers and precision grinders. The gleaming, mirror-like mounting surfaces we produce boast critical tolerances strictly controlled between ±0.01mm and ±0.02mm. By receiving fully finished, ready-to-install components, your procurement and engineering teams can drastically shorten supply chain cycles and eliminate the overhead of managing secondary machining contractors.
Multi-axis milling capable of handling massive upright columns and beds
Electrical Discharge Machining (EDM) for ultra-precise internal features
Guaranteed flatness and parallelism for critical linear guideway mounting surfaces
Our production capabilities encompass the entire spectrum of machine tool structural components. From the massive main base of the machine tool to the precise end cap of a motor, our portfolio is completely comprehensive. We specialize in deep customization based on your proprietary CAD or 3D models. From the initial rapid prototyping and mold development to full-scale volume manufacturing, we possess the agile infrastructure required to meet the highly specific assembly demands of next-generation CNC machinery.
End-to-end support from initial mold design to final production runs
Flexible manufacturing lines capable of adapting to unique geometric requirements
Scalable output designed to match your specific inventory and assembly schedules
Confidence in heavy machinery starts with uncompromising quality assurance. Operating strictly under the ISO 9001:2015 quality management system, our inspection protocols leave absolutely nothing to chance. Our laboratories are outfitted with advanced Coordinate Measuring Machines (CMM), optical spectrometers for exact chemical analysis, and X-ray flaw detectors. We execute a 100% comprehensive inspection routine—from the raw material intake and pre-pour chemical verification to the final pre-shipment dimensional audit—ensuring zero-defect delivery.
Spectrometric verification of molten metal chemistry prior to every single pour
Sub-surface X-ray scanning to guarantee the absence of hidden micro-fractures
Detailed CMM reporting provided to validate the exactness of all machined tolerances
The harsh reality of an active workshop environment demands superior exterior protection. We offer an extensive array of professional surface treatments, including high-impact shot blasting, environmental painting, electrophoresis, and industrial plating. These processes do more than strip away casting oxidation; they create a sleek, visually impressive finish that feels smooth and professional to the touch. More importantly, these treatments form an impenetrable barrier against cutting fluids, atmospheric moisture, and industrial chemicals, drastically extending the operational lifespan of the equipment.
Deep-penetrating electrophoresis for uniform, rust-proof coverage on complex shapes
Durable, chemical-resistant industrial painting tailored to your brand colors
Precision sandblasting that creates the perfect tactile surface for subsequent coatings
Selecting a manufacturing partner for critical structural components is a decision that impacts your entire production ecosystem. We understand that supply chain reliability, consistent metallurgical quality, and strict adherence to geometric tolerances are non-negotiable. By consolidating the foundry and precision machining processes under one roof, we eliminate the logistical friction that typically plagues heavy component procurement. Our streamlined operations are designed specifically to support continuous, high-volume assembly lines.
Single-Source Accountability: From the raw iron ore to the final micron-accurate milled surface, we control the entire lifecycle of the component, ensuring unbroken quality custody.
Scalable Production Capacity: Our foundry and machining floors are optimized to handle fluctuating volume demands, ensuring you never face assembly line stoppages due to component shortages.
Engineering Synergy: Our technical teams collaborate directly with your designers to optimize casting geometries, reducing unnecessary material weight while actually increasing structural rigidity.
Global Logistics Expertise: We possess deep experience in securely packaging and routing massive, heavy-tonnage components across international supply chains without transit damage.
Dimensional stability in massive castings is achieved through rigorous metallurgical control and strategic stress-relief processes. After the initial casting and cooling phase, our large beds and upright columns undergo a controlled thermal aging process (artificial aging) or natural aging. This carefully relieves internal residual stresses trapped within the metal during solidification, ensuring that the component will not warp or micro-deform once it is subjected to the operational loads of your machinery.
The timeline from initial CAD submission to the delivery of a first-article prototype generally spans 4 to 6 weeks, depending on the complexity and sheer size of the mold required. This period includes mold design, pattern making, the initial trial pour, precise CNC machining, and exhaustive CMM inspection. Once the prototype is approved by your engineering team, volume production can commence immediately with highly predictable delivery schedules.
Absolutely. While we commonly pour standard grades of Gray Iron and Ductile Iron, our on-site spectrometry allows us to precisely adjust the chemical composition of the melt. If your application requires elevated tensile strength, enhanced wear resistance, or specific thermal expansion coefficients, we can formulate custom alloy blends—including specialized carbon steels and aluminum alloys—to perfectly match your exact mechanical requirements.
Preventing internal defects requires masterful fluid dynamics during the pour. We utilize advanced casting simulation software to design optimal gating and riser systems before a single drop of metal is poured. This ensures progressive directional solidification, meaning the metal cools in a way that naturally feeds molten material into areas prone to shrinkage. Furthermore, our X-ray flaw detectors verify the internal solidity of the finished piece.
We believe in total transparency and traceability. Every shipment can be accompanied by a comprehensive quality dossier upon request. This typically includes the material test report (MTR) detailing the exact chemical composition from the spectrometer, a hardness test certification, and a detailed CMM inspection report that maps the finished dimensions against your original CAD tolerances. This documentation seamlessly integrates into your own internal ISO compliance records.
