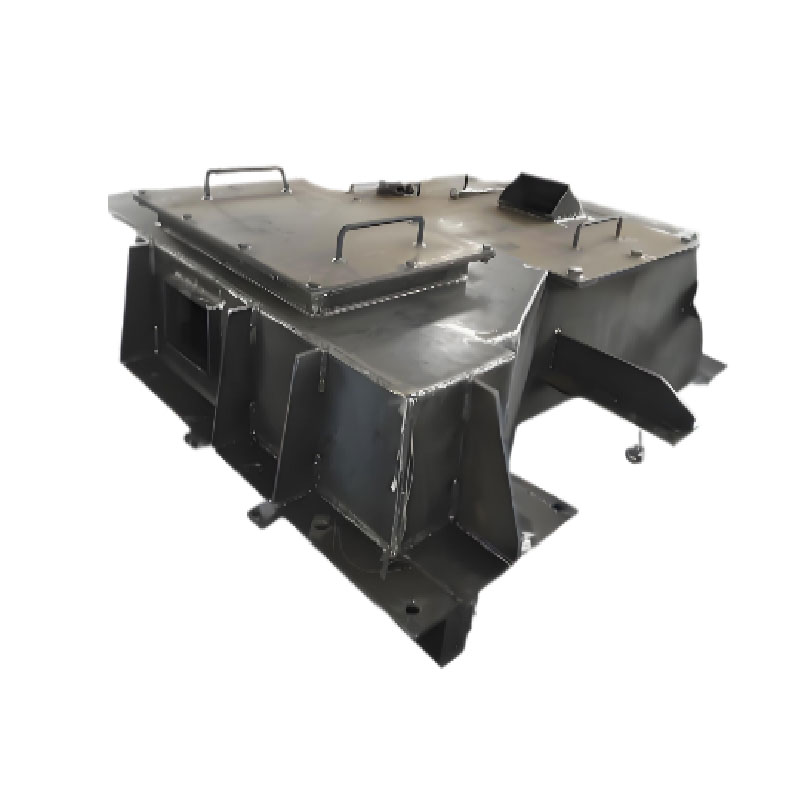

When engineering complex industrial infrastructure, the structural integrity of your metal components dictates the longevity and safety of the entire system. Our weld parts fabrication service transforms raw, heavy-duty metal plates into meticulously crafted structural masterpieces. Running your hands along the finished assemblies, you will feel the seamless, deeply penetrated weld joints and the exceptionally smooth surface finishes, completely free of slag, spatter, or sharp burrs. The visual uniformity of our laser-welded seams speaks volumes about the craftsmanship and stability inherent in every piece.
By integrating these precisely fabricated components into your operational framework, you eliminate the risks of joint failure under immense pressure or thermal stress. Whether it is a massive condenser housing or an intricate water-cooled fume duct, each fabricated part is engineered to absorb operational vibrations, resist severe environmental corrosion, and maintain absolute dimensional stability over decades of rigorous industrial use. This unwavering reliability drastically reduces your maintenance downtime and replacement costs, ensuring your facility operates at peak efficiency without unexpected mechanical interruptions.

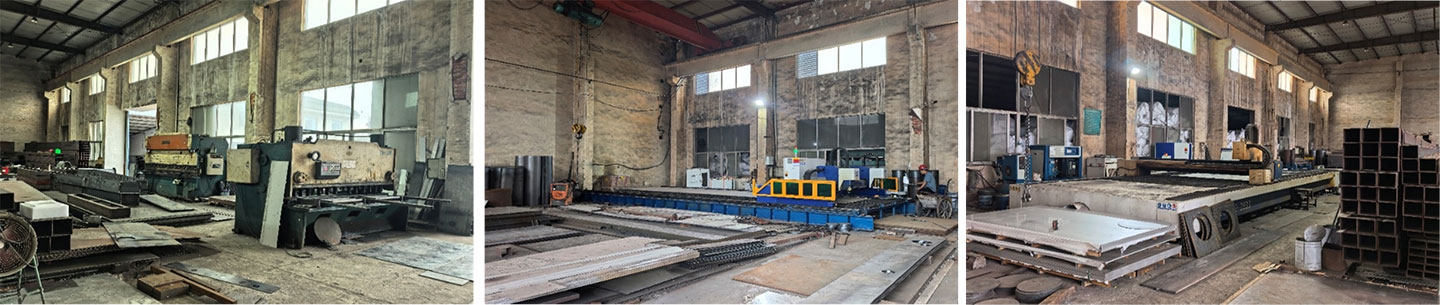

| Equipment & Facilities | A complete range of equipment and testing instruments ensure that we can produce workpieces with complex shapes and precise dimensions. The main facilites includes CNC flame cutting machine, Laser Cutting Machine, CNC bending machine, Laser Welding Machine and so on. |
|---|---|
| Main Material | The main material includes various metal plates with different thickness such as carbon steel, stainless steel, aluminum, copper and so on. |
| Fabrication | The sheet metal is leveled, lase cutting, roll, bent and welded as per drawings. Metal structural parts: metallurgical parts & fittings, condensers, mechanical housings. |

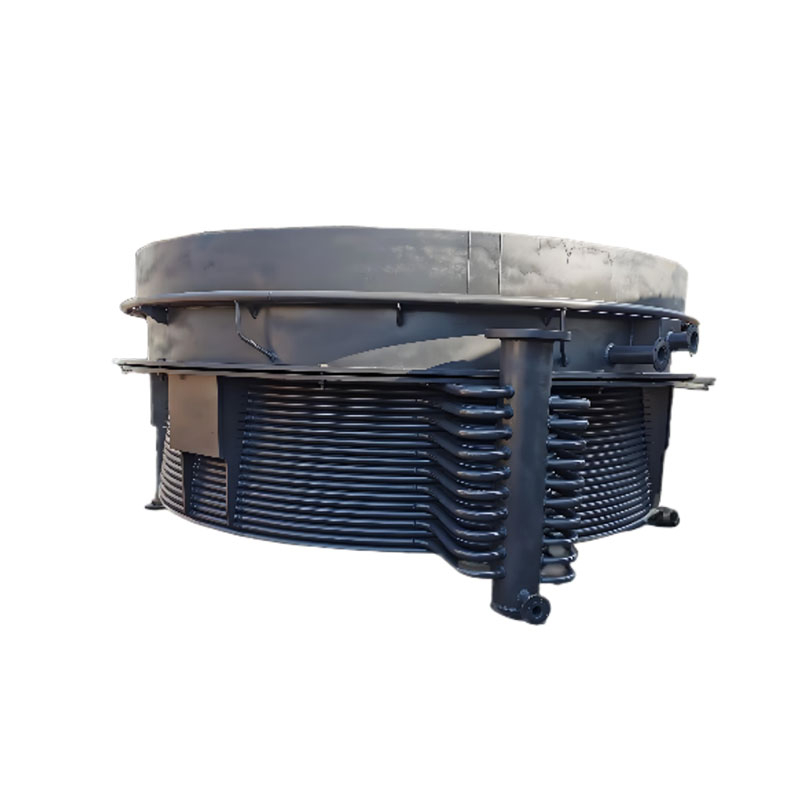

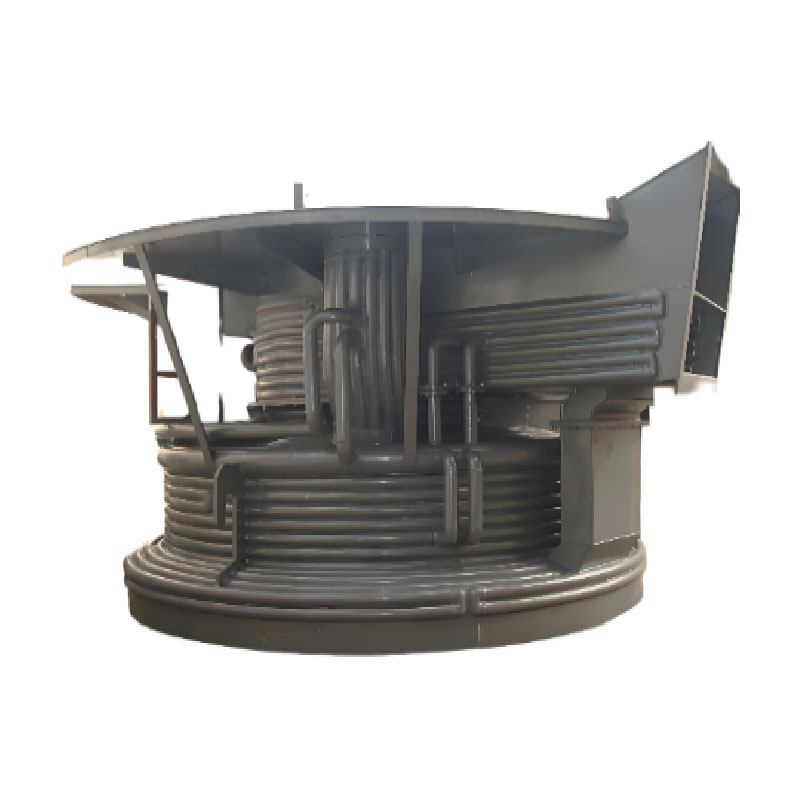

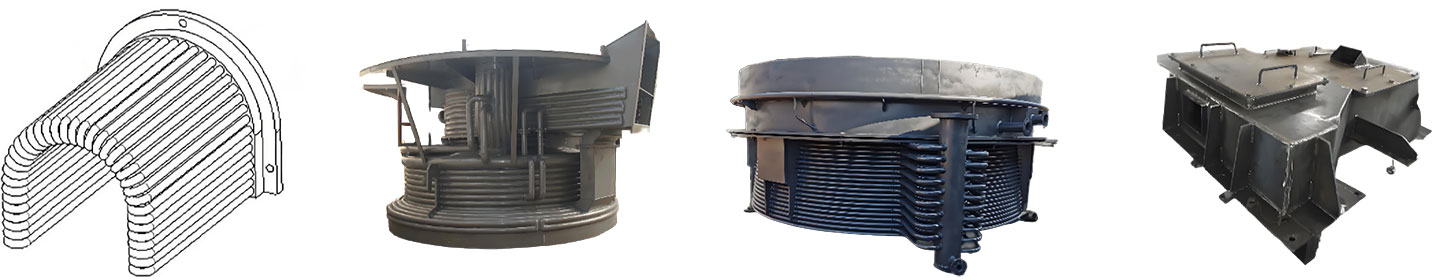

| Main Products | Water cooled compensator, water cooled cable, water cooled proof, water cooled upper shell, water cooled panel, water cooled fume duct, watercooled fume hood, etc. |
| Processing Precision | ±0.02mm or strictly as per drawing requirements |
| Surface Treatment | Anodizing, blackening, powder coating, galvanizing, polishing, etc. |
| Quality Certification | ISO 9001, ISO/TS 16949, RoHS, AS9100D |
| Service Mode | OEM/ODM deep customization based on drawings |
Achieving flawless integration in heavy-duty mechanical systems requires components that exceed standard manufacturing norms. Our fabrication process is engineered to deliver unparalleled structural reliability, ensuring every welded assembly performs flawlessly under extreme industrial conditions. We focus on creating stress-relieved, dimensionally accurate parts that slot perfectly into your existing architecture.
Exceptional Joint Strength: Deep-penetration welding techniques guarantee that all seams can withstand high-pressure environments and continuous mechanical vibrations without micro-cracking.
Thermal Distortion Control: Advanced heat management during the welding phase prevents warping, maintaining the absolute flatness and concentricity of large-scale panels and cylindrical housings.
Corrosion-Resistant Finishes: Premium surface treatments create an impenetrable barrier against moisture, chemical exposure, and extreme temperatures, significantly extending the lifespan of the metal.
Seamless Assembly Integration: By adhering to ultra-tight tolerances, our fabricated parts eliminate the need for on-site modifications, allowing your engineering teams to assemble systems swiftly and securely.
Relying on a fragmented supply chain for various fabrication steps introduces unacceptable risks in quality and timing. We operate a fully integrated, state-of-the-art manufacturing facility equipped to handle every phase of metal transformation under one roof. From the initial leveling of thick metal plates to the final laser weld, our comprehensive machinery lineup guarantees absolute control over complex shapes and precise dimensions.
CNC Flame & Laser Cutting: Delivers incredibly clean edges and intricate geometries on thick metal plates, ensuring a perfect fit-up for subsequent welding phases.
Precision CNC Bending: Applies exact tonnage to form complex angles without compromising the structural grain of the metal, essential for custom mechanical housings.
Advanced Laser Welding: Produces exceptionally narrow, deep, and clean weld seams with minimal heat-affected zones, preserving the base material's metallurgical properties.
In-House Testing Instruments: Rigorous dimensional and structural verification at every manufacturing stage prevents defects and guarantees adherence strictly to your engineering drawings.
Different industrial environments demand specific metallurgical properties, from superior thermal conductivity to extreme tensile strength. We maintain a vast inventory of premium metal plates in varying thicknesses, allowing us to tailor the material selection precisely to your application's unique stressors. Our expertise ensures the optimal material is utilized for maximum operational longevity.
Heavy-Duty Carbon Steel: Ideal for massive structural frameworks and metallurgical fittings requiring immense load-bearing capabilities and rigid stability.
Corrosion-Resistant Stainless Steel: The ultimate choice for condensers and fluid-handling housings that must endure continuous exposure to moisture and harsh chemicals without degrading.
Lightweight Aluminum: Provides an exceptional strength-to-weight ratio, perfect for dynamic mechanical parts where reducing overall system mass is critical.
High-Conductivity Copper: Specifically utilized for specialized water-cooled components, ensuring rapid heat dissipation in high-temperature industrial processing environments.
In critical infrastructure, a single weld failure can lead to catastrophic downtime and safety hazards. We treat every joint and seam with uncompromising scrutiny, implementing rigorous quality control protocols that align with the highest global standards. Our commitment to precision ensures your fabricated assemblies possess the structural integrity necessary to operate safely and continuously.
Micro-Precision Tolerances: Maintaining strict dimensional accuracy down to ±0.02mm ensures frictionless integration into complex mechanical assemblies.
Non-Destructive Testing (NDT): Utilizing advanced ultrasonic and X-ray inspections to detect internal voids or inclusions, guaranteeing solid, deeply penetrated welds.
Certified Quality Systems: Operating under strict ISO 9001, ISO/TS 16949, and AS9100D frameworks to deliver consistent, repeatable excellence across all production batches.
Stress Relief Protocols: Implementing post-weld thermal treatments to eliminate residual internal stresses, preventing premature fatigue and cracking during heavy operational cycles.
Off-the-shelf solutions rarely meet the highly specific demands of advanced industrial machinery. We provide a deeply integrated OEM and ODM service model, transforming your exact blueprints into tangible, high-performance metal structures. Our agile manufacturing environment is designed to scale seamlessly alongside your project requirements.
Strict Blueprint Adherence: Every cut, bend, and weld is executed exactly as per your provided drawings, ensuring the final product matches your engineering vision flawlessly.
Rapid Prototyping: Accelerate your development cycle with fast, accurate initial samples, allowing your engineering team to validate designs before committing to large-scale manufacturing.
Scalable Mass Production: Our automated production lines effortlessly transition from single custom units to high-volume output without any degradation in quality or consistency.
Adaptive Engineering Support: Our technical team collaborates closely with your designers to optimize fabrication techniques, enhancing product performance while minimizing unnecessary material costs.
The external finish of a fabricated metal part is not merely aesthetic; it is the first line of defense against environmental degradation. We offer a comprehensive suite of surface treatments and finishing processes designed to fortify your components against wear, tear, and extreme atmospheric conditions. The result is a tactilely smooth, visually professional, and highly durable industrial product.
Industrial Anodizing & Galvanizing: Creates a robust, oxidation-resistant layer that prevents rust and electrochemical corrosion in damp or highly reactive environments.
Durable Powder Coating: Applies a thick, uniform, and impact-resistant finish that protects mechanical housings from abrasions, scratches, and harsh UV exposure.
Precision Polishing: Eliminates microscopic surface imperfections, reducing friction and preventing the accumulation of contaminants on sensitive metallurgical fittings.
Protective Blackening: Provides a sleek, uniform dark finish that offers mild corrosion resistance while minimizing light reflection for specific optical or internal machinery applications.
Entrusting your critical components to an unproven facility is a gamble you cannot afford. With years of specialized experience in heavy industrial fabrication, we have successfully delivered complex metal structures to some of the most demanding sectors worldwide. Our portfolio speaks to our ability to solve intricate engineering challenges through superior metalworking.
Metallurgical Equipment: Proven expertise in fabricating high-endurance parts and fittings that withstand the extreme heat and abrasive conditions of metal smelting and processing plants.
Advanced Cooling Systems: Extensive track record in manufacturing leak-proof water-cooled compensators, panels, and fume hoods that manage extreme thermal loads safely.
Heavy Machinery Housings: Trusted by leading equipment manufacturers to build rugged, vibration-dampening enclosures that protect sensitive internal mechanics.
Industrial Condensers: Delivering perfectly sealed, high-pressure vessels and structural frameworks essential for large-scale chemical and power generation facilities.
Delays in component delivery can stall entire infrastructure projects, leading to massive financial overruns. By consolidating the entire fabrication process—from raw material leveling to final surface treatment—within our own facility, we eliminate the bottlenecks associated with third-party outsourcing. This streamlined approach guarantees punctual delivery while optimizing your procurement budget.
Integrated Workflow Efficiency: Seamless transitions between laser cutting, CNC bending, and welding drastically reduce idle time on the factory floor, accelerating your project timeline.
Minimized Material Waste: Advanced nesting software and high-precision cutting technologies ensure maximum utilization of metal plates, directly lowering your raw material costs.
Reduced Rework Rates: Our stringent in-line quality controls catch deviations immediately, ensuring a near-perfect yield rate and eliminating costly post-production corrections.
Predictable Project Scheduling: Transparent communication and highly organized production management provide you with reliable delivery dates, allowing you to synchronize your assembly schedules perfectly.
Securing a reliable manufacturing partner is the cornerstone of a successful industrial operation. We stand apart by offering an uncompromising blend of technological superiority, material expertise, and dedicated customer alignment. When you source your fabricated parts through our facility, you are investing in long-term operational peace of mind.
Single-Source Reliability: We handle every aspect of the fabrication lifecycle, completely removing the logistical headaches of managing multiple specialized vendors.
Unwavering Quality Assurance: Every component is backed by comprehensive testing data and international certifications, ensuring it meets the strictest regulatory and safety standards.
Global Export Competence: Decades of experience in international logistics ensure your heavy structural parts are packaged securely and shipped efficiently to any global destination.
Dedicated Technical Consultation: Our engineering experts remain at your disposal throughout the entire project, providing proactive solutions to enhance manufacturability and performance.
We utilize advanced CNC laser cutting and bending machinery to achieve precise initial geometries. During the welding phase, we employ custom-designed jigs and fixtures to hold parts firmly in place, minimizing thermal distortion. Final inspections are conducted using high-precision coordinate measuring machines (CMM) to verify tolerances down to ±0.02mm.
Yes, depending on the specific application and engineering requirements. We utilize specialized laser welding and brazing techniques to join dissimilar metals, such as copper to stainless steel, ensuring a strong metallurgical bond. This is particularly useful in manufacturing advanced water-cooled panels and compensators.
For structural components subjected to high pressure or heavy loads, we offer a comprehensive suite of NDT services. This includes ultrasonic testing (UT) to detect deep internal flaws, radiographic testing (X-ray) for complete weld seam verification, and magnetic particle inspection (MPI) for surface-level crack detection.
Our facility is equipped with industrial-scale finishing lines capable of accommodating massive structural parts. We offer large-capacity sandblasting to prepare the surface, followed by industrial powder coating, galvanizing, or specialized anti-corrosion painting, ensuring uniform protection across the entire assembly regardless of its size.
Lead times vary based on the complexity and volume of the project. Typically, initial prototype development and approval take between 2 to 4 weeks. Once the drawings and samples are validated, full-scale mass production runs are generally completed within 4 to 8 weeks, supported by our highly efficient, integrated in-house manufacturing processes.
