Forming Process: Hot Die Forging + Shot Blasting/Sandblasting + CNC Precision Machining
Available Materials: Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to drawings
Precision Control: Dimensional tolerance of mounting holes and reference surfaces ≤ ±0.05mm, surface roughness Ra3.2~Ra1.6
Performance Advantages: Dense metal structure, continuous forging flow line, strong load-bearing capacity, impact resistance, fatigue resistance and long service life
Customization Service: Support customizing dimensions, structure and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report
Bearing housing and shaft support components for mechanical equipment
Mechanical connection and installation parts for construction machinery and heavy equipment
Chassis and transmission system components for automotive and agricultural machinery
Custom flange load-bearing parts for various non-standard equipment

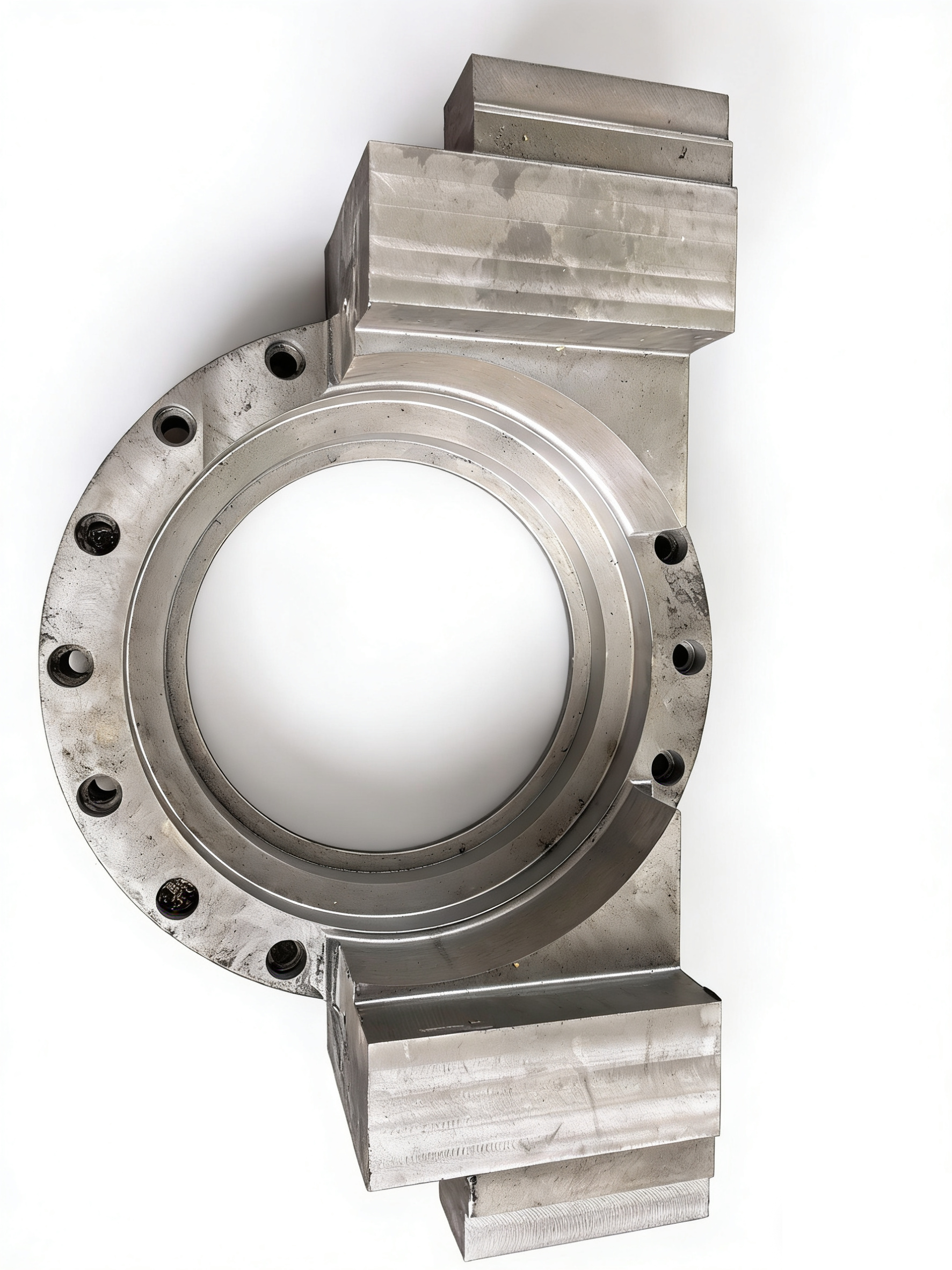

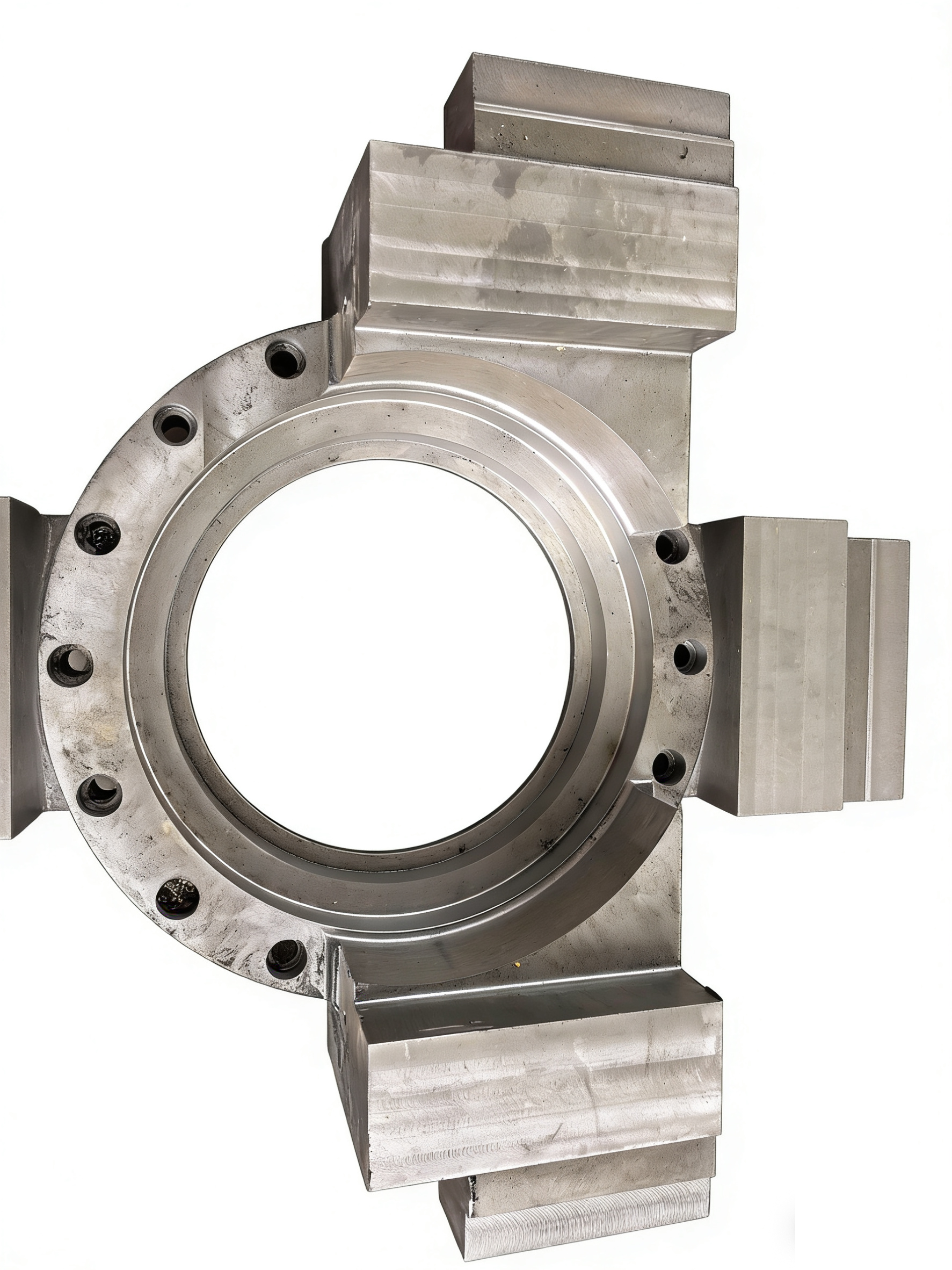

The Special Shaped Custom Flange Forging represents the pinnacle of metallurgical craftsmanship, designed specifically to anchor complex mechanical architectures and heavy-duty equipment. When handling this component, the sheer density of the forged steel is immediately apparent, reflecting a continuous internal grain structure that eliminates the microscopic voids often found in cast alternatives. The meticulously machined surfaces, boasting a refined roughness of Ra3.2 to Ra1.6, offer a smooth, tactile finish that guarantees a flawless seal and vibration-free seating upon installation. By combining the brute force of hot die forging with the surgical precision of advanced CNC machining, this flange acts as the unyielding backbone for high-stress machinery. It seamlessly resolves the chronic issues of joint fatigue, structural deformation, and misalignment in extreme environments. Whether deployed in the heart of a high-torque transmission system or serving as a critical bearing housing support, the robust geometry ensures that operational loads are distributed evenly. This exceptional structural integrity significantly extends the service life of your entire mechanical assembly, reduces the frequency of component replacements, and ultimately drives down long-term maintenance overhead for large-scale engineering projects.
Product Name | Special Shaped Custom Flange Forging |
|---|---|
Forming Process | Hot Die Forging + Shot Blasting/Sandblasting + CNC Precision Machining |
Available Materials | Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to drawings |
Dimensional Tolerance | Mounting holes and reference surfaces ≤ ±0.05mm |
Surface Roughness | Ra3.2 ~ Ra1.6 |
Dimensions & Structure | Support customizing dimensions, structure and materials according to customer's 2D/3D drawings |
Performance Advantages | Dense metal structure, continuous forging flow line, strong load-bearing capacity, impact resistance, fatigue resistance and long service life |
Quality Inspection | Provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report |
Application Fields | Bearing housing and shaft support components for mechanical equipment, Mechanical connection and installation parts for construction machinery and heavy equipment, Chassis and transmission system components for automotive and agricultural machinery, Custom flange load-bearing parts for various non-standard equipment |
Standard Compliance | Non-standard customization (compatible with ANSI, ASME, DIN, JIS, AWWA, etc. upon request) |
For large-scale infrastructure projects and international equipment manufacturing, risk mitigation is just as important as the physical product itself. We provide a transparent, rigorous quality assurance framework that guarantees every single flange meets exact specifications.
Comprehensive Material Certification: Every delivery includes detailed material certificates, verifying the exact chemical composition and origin of the steel used.
Verified Heat Treatment: We provide full heat treatment reports, documenting the precise thermal cycles used to achieve the required hardness and tensile strength.
Non-Destructive Testing (NDT): Utilizing advanced ultrasonic or magnetic particle inspection to guarantee the absence of any internal or surface-level micro-fractures.
Seamless Compliance: Our exhaustive documentation ensures you face zero hurdles during internal quality audits, regulatory compliance checks, or final client handovers.
Sourcing critical components requires a partner who deeply understands the specific operational stresses of your industry. Our special shaped flanges have been rigorously tested and proven across a multitude of high-demand sectors worldwide.
Construction & Heavy Machinery: Trusted in the manufacturing of excavators, cranes, and loaders, providing unbreakable mechanical connections under massive payload stress.
Automotive & Commercial Vehicles: Widely utilized in chassis construction and transmission systems, contributing to safer, more reliable fleet operations.
Agricultural Equipment: Powering the drivetrains and structural supports of tractors and harvesters operating in harsh, unpredictable outdoor environments.
Industrial Automation: Serving as the foundational bearing housings and shaft supports for complex, non-standard manufacturing equipment and robotics.
Selecting the right manufacturing partner is critical to maintaining the integrity of your supply chain and the quality of your final equipment. We go beyond mere production, acting as an extension of your engineering and procurement departments.
End-to-End Manufacturing Capability: From initial tooling design and raw material sourcing to final CNC machining and quality inspection, we control the entire process in-house.
Commitment to Global Standards: Our manufacturing processes are highly adaptable, ensuring full compatibility with ANSI, ASME, DIN, JIS, and AWWA standards based on your project needs.
Scalable Production Volume: Whether you require a limited run of highly specialized prototypes or continuous, high-volume production, our facilities are equipped to scale with your demands.
Dedicated Technical Support: Our experienced engineering team provides continuous consultation, helping you refine designs for better manufacturability and cost-efficiency.
Hot die forging applies immense pressure to heated metal, which forces the internal grain structure to align with the physical contours of the custom shape. This continuous flow line eliminates weak points and internal voids, resulting in a significantly denser metal matrix. Consequently, the flange can withstand much higher impact forces and heavier structural loads compared to standard cast alternatives.
Absolutely. Our core expertise lies in non-standard customization. By utilizing advanced die design and multi-axis CNC machining, we can produce asymmetrical shapes, specialized mounting brackets, integrated shaft supports, and precise off-center hole configurations based exactly on your 2D or 3D CAD models.
To guarantee absolute structural integrity, we utilize a combination of Ultrasonic Testing (UT) to detect any internal anomalies deep within the metal, and Magnetic Particle Inspection (MPI) or Dye Penetrant Inspection (DPI) to identify microscopic surface cracks. These rigorous tests ensure that every flange is 100% defect-free before it leaves our facility.
Dimensional stability is maintained through precisely controlled thermal cycling. We utilize advanced programmable furnaces to regulate heating and cooling rates during the quenching and tempering processes. Furthermore, we leave a calculated machining allowance prior to heat treatment; the final CNC precision machining is performed after the metal has stabilized, ensuring tolerances remain strictly within ≤ ±0.05mm.
Yes. While these are custom, special-shaped components, we can engineer the critical mating surfaces, bolt hole circles, and pressure ratings to strictly comply with international standards including ASME, ANSI, DIN, JIS, and AWWA. You simply need to specify the required standard during the design phase, and our engineering team will ensure full compatibility.
