| Quantity: | |
|---|---|
Forming Process: Hot Die Forging + Shot Blasting + CNC Precision Machining
Available Materials: Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to drawings
Precision Control: Dimensional tolerance of fork holes and shaft journal ≤ ±0.05mm, surface roughness Ra3.2~Ra1.6, ensuring stable transmission
Performance Advantages: Dense metal structure, continuous forging flow line, excellent impact resistance, fatigue resistance and torque transmission capacity, meeting the requirements of heavy-load drive systems
Customization Service: Support customizing dimensions, structure and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report
Automotive drive shaft and universal joint systems
Agricultural machinery and construction machinery transmission components
Heavy-duty equipment transmission connection parts
Custom forged yoke for various mechanical transmission systems

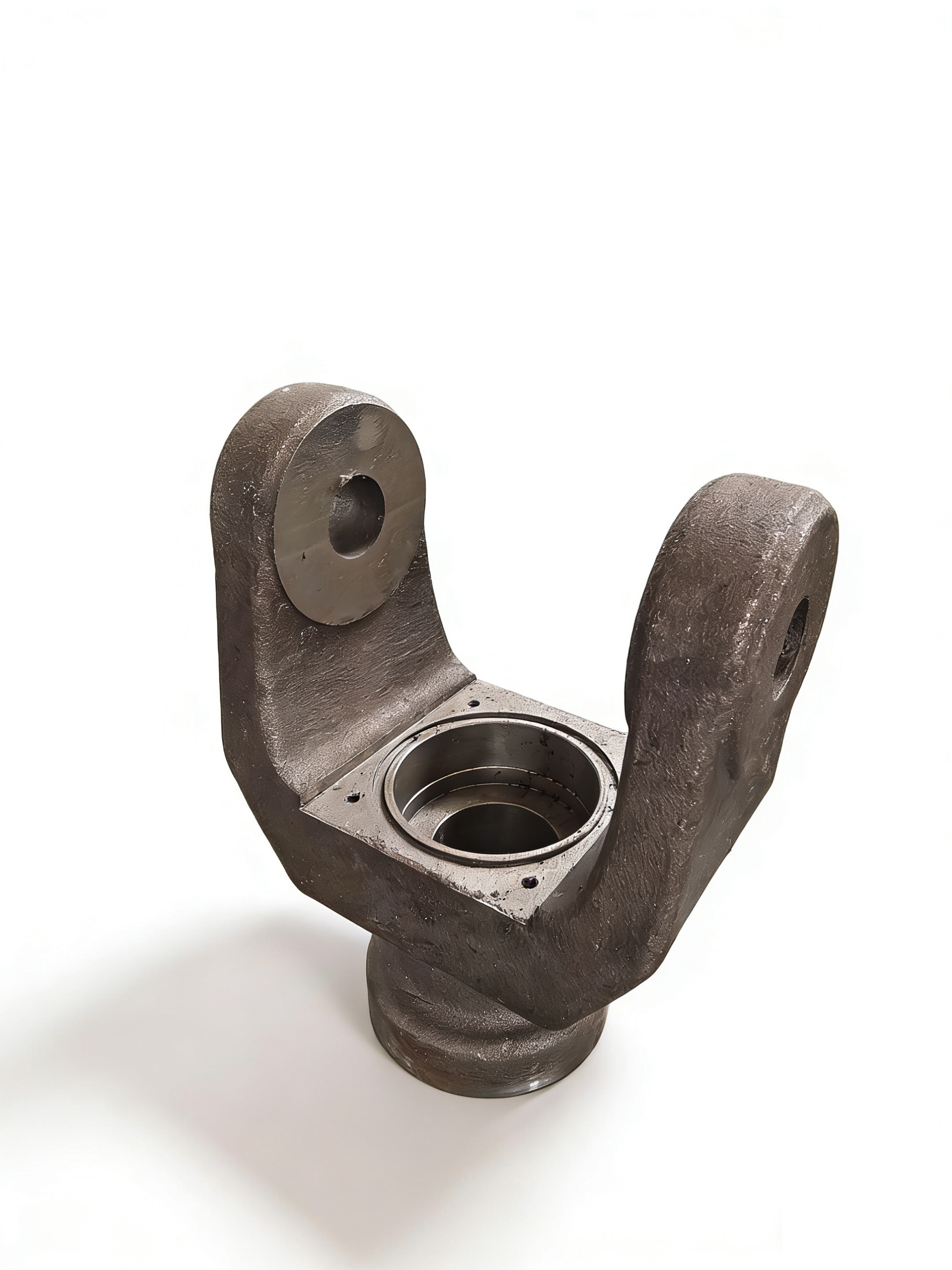

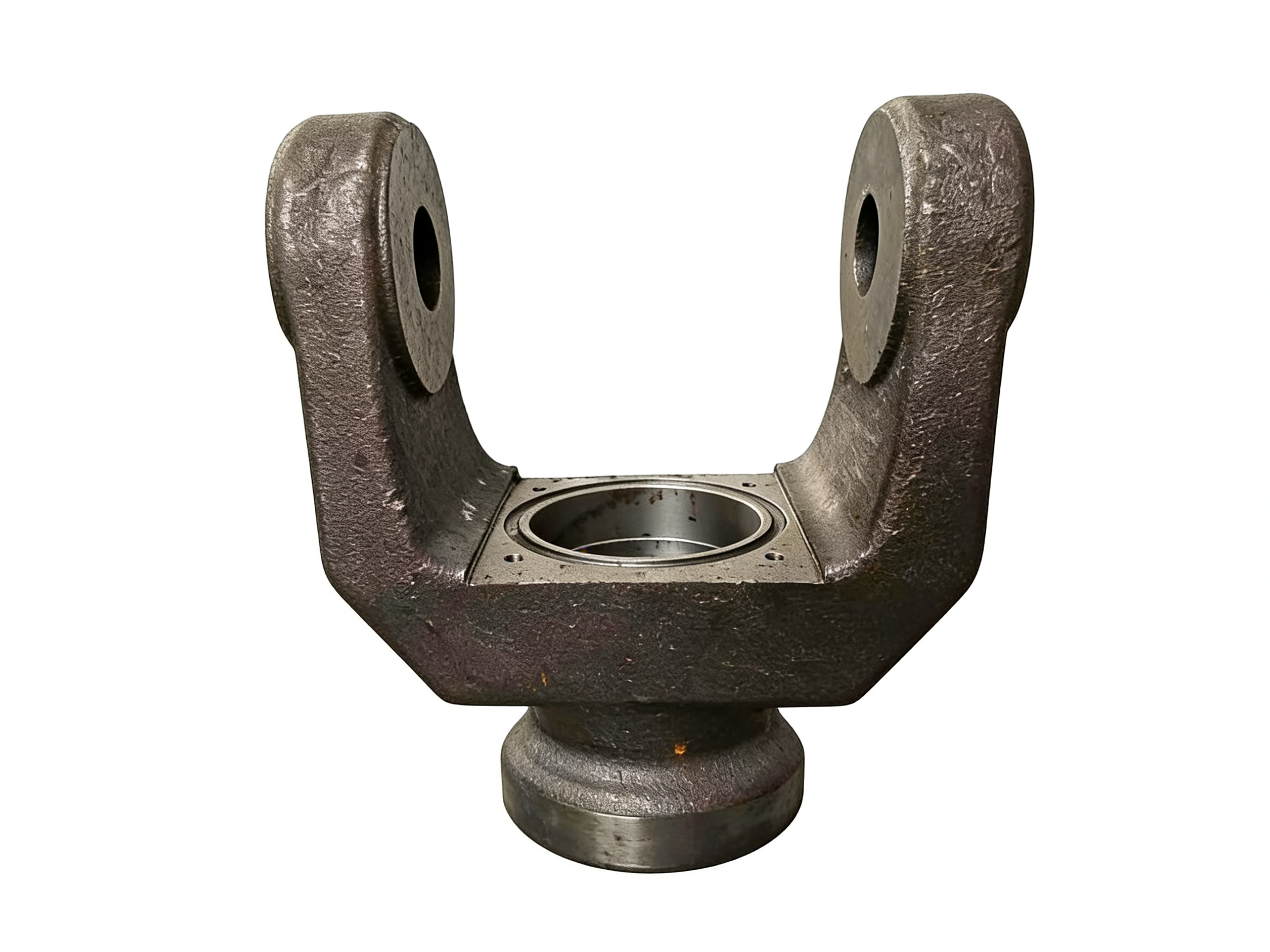

The forged yoke stands as the critical junction in any high-torque drivetrain system, demanding absolute resilience under extreme torsional stress. When you handle our precision-forged yoke, the substantial weight and the flawlessly smooth, cool touch of the CNC-machined journals immediately convey its industrial-grade pedigree. Unlike cast alternatives that harbor microscopic voids, our hot die forging process aligns the internal grain structure of the steel, eliminating internal porosity and creating a dense metal matrix. This translates to a component that absorbs violent driveline shocks and continuous harmonic vibrations without succumbing to metal fatigue. For engineering teams and procurement managers, integrating these yokes means drastically reducing equipment downtime and extending the lifespan of the entire transmission system. The hardened seal surfaces glide silently against mating components, ensuring fluid retention and preventing premature wear in the most demanding environments. Every contour is purposefully shaped to shed mud and debris while maximizing the cross-sectional thickness where shearing forces are most severe, offering ultimate peace of mind for heavy-duty equipment operators.
Engineering a reliable drivetrain requires exact specifications and uncompromising material standards. Our forged yokes are manufactured to meet the rigorous demands of modern mechanical systems, ensuring seamless integration and optimal performance. The following technical parameters detail the exact capabilities, tolerances, and material options available for your specific project requirements. By adhering to these strict specifications, we guarantee that every component delivered will perform flawlessly under maximum load conditions.
Product Name | Forged Yoke / Pinion Yoke / Slip Yoke |
Forming Process | Hot Die Forging + Shot Blasting + CNC Precision Machining |
Available Materials | Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, Forged Chromoly (Customizable) |
Dimensional Tolerance | Fork holes and shaft journal ≤ ±0.05mm |
Surface Roughness | Ra3.2~Ra1.6 |
U-Joint Series Compatibility | 1100, 1210, 1310, 1330, 1350, 1410, 1480, etc. |
Spline Count | 27, 28, 29, 31, 35, etc. (Customizable) |
Design Style | U-Bolt Style / Strap Style / Short Design |
Axle Fitment | Dana 30/44/60/70/80, Ford 9", GM 14-Bolt, etc. |
Quality Inspection | Material certificate, Heat treatment report, Non-destructive testing (NDT) report |
Application Fields | Automotive drive shafts, universal joint systems, agricultural/construction machinery, heavy-duty equi |
Standard components don't always fit specialized machinery. As a flexible manufacturer, we offer deep customization services to align perfectly with your unique engineering blueprints and performance criteria.
2D/3D Drawing Realization: Our engineering team works directly with your CAD files to produce exact replicas of your proprietary yoke designs, ensuring seamless integration into your assemblies.
Specialized Material Sourcing: Beyond standard carbon and alloy steels, we offer premium Forged Chromoly for applications demanding the absolute highest strength-to-weight ratio.
Custom Spline Cutting: If your transmission requires a non-standard spline count or profile, our advanced broaching and shaping equipment can deliver exact custom fits.
Tailored Surface Treatments: Depending on your operational environment, we can apply custom anti-corrosion coatings, specialized plating, or custom paint finishes.
Scalable Production Runs: Whether you need a small batch of highly specialized prototypes for testing or continuous volume shipments for an active assembly line, our production capacity scales to your demands.
Procuring critical drivetrain components represents a significant investment. We stand firmly behind the metallurgical quality and machining precision of our forged yokes, offering robust guarantees to protect your operations.
Comprehensive Quality Guarantee: We offer an industry-leading warranty against manufacturing defects, material flaws, and premature failure under specified operational loads.
Anti-Breakage Assurance: For our premium Forged Chromoly lines, we provide extended guarantees against sheer breakage, giving you ultimate confidence in extreme applications.
Rapid Replacement Protocol: In the rare event of a non-conformance issue, our dedicated support team ensures expedited replacements to keep your production lines moving.
Technical Engineering Support: Our metallurgical and mechanical engineers are available to assist your team with load calculations, fitment troubleshooting, and performance optimization.
Long-Term Partnership Focus: We view our warranty not just as a policy, but as a commitment to the long-term stability and success of your manufacturing and distribution networks.
Selecting the right manufacturing partner is crucial for maintaining the integrity of your end products. We combine decades of forging expertise with modern, data-driven quality management to deliver unparalleled value.
Direct Manufacturer Advantage: Sourcing directly from our production floors optimizes your procurement budget and streamlines communication.
Consistent Supply Chain Stability: With robust raw material sourcing and high-capacity forging presses, we ensure on-time delivery even during periods of high market demand.
Stringent Material Verification: We only source steel from certified mills, verifying chemical compositions via spectrometry before a single billet is heated.
Continuous Process Improvement: We constantly reinvest in cutting-edge CNC and robotic automation to enhance precision and reduce lead times.
Global Export Expertise: Our logistics team is highly experienced in international shipping protocols, ensuring your components arrive securely and clear customs without delay.
To assist your engineering and purchasing departments, we have compiled detailed answers to the most common technical inquiries regarding our forged yokes.
What is the primary advantage of your hot die forging over cast yokes?
Hot die forging compresses the steel at high temperatures, aligning the internal grain structure and eliminating the microscopic voids commonly found in castings. This results in a significantly denser metal matrix that offers vastly superior tensile strength, impact resistance, and fatigue life under heavy torsional loads.
Can you accommodate custom spline configurations not listed in your standard specifications?
Absolutely. While we stock standard configurations like 27, 28, 31, and 35 splines, our CNC broaching capabilities allow us to cut custom spline counts, pressure angles, and pitch diameters based entirely on your specific 2D or 3D engineering drawings.
How do you ensure the dimensional stability of the fork holes and shaft journals?
Following the forging and heat treatment processes, the yokes undergo precision CNC machining. We maintain strict environmental controls and utilize advanced tooling to achieve a dimensional tolerance of ≤ ±0.05mm. Every batch is then verified using coordinate measuring machines (CMM) to guarantee perfect concentricity.
What documentation is provided with volume shipments?
We understand the importance of traceability in industrial manufacturing. Every shipment can be accompanied by a comprehensive quality dossier, which includes raw material certificates, detailed heat treatment reports, and Non-Destructive Testing (NDT) results, ensuring full compliance with your quality assurance standards.
Why do you recommend the U-Bolt style design for heavy-duty applications?
The U-Bolt style provides a more robust 360-degree clamping force around the universal joint bearing caps compared to strap styles. Furthermore, in severe operating environments, U-bolts are much easier to replace if damaged, whereas broken strap bolts often require drilling and tapping to extract from the yoke ears, causing significant equipment downtime.
What surface treatments are applied to prevent corrosion?
As a standard, our yokes undergo rigorous shot blasting to remove forging scale and create a uniform surface texture. Depending on your requirements, we can apply various anti-corrosion treatments, including specialized oiling, zinc plating, or custom powder coating, to withstand harsh agricultural or off-road environments.
