Forming Process: Hot Die Forging + Shot Blasting/Sandblasting + CNC Precision Machining
Available Materials: Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to customer drawings
Precision Control: Dimensional tolerance of mounting holes and reference surfaces ≤ ±0.05mm, surface roughness Ra3.2~Ra1.6, ensuring stable installation and reliable load-bearing
Performance Advantages: Dense metal structure, continuous forging flow line, excellent high strength, impact resistance and fatigue resistance, meeting automotive safety regulations and heavy-load working conditions
Customization Service: Support customizing dimensions, structure and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report
Steering system support components for passenger cars and commercial vehicles
Chassis mounting brackets for automotive and new energy vehicles
Construction machinery and agricultural equipment steering support parts
Custom forged mounting brackets for various mechanical systems

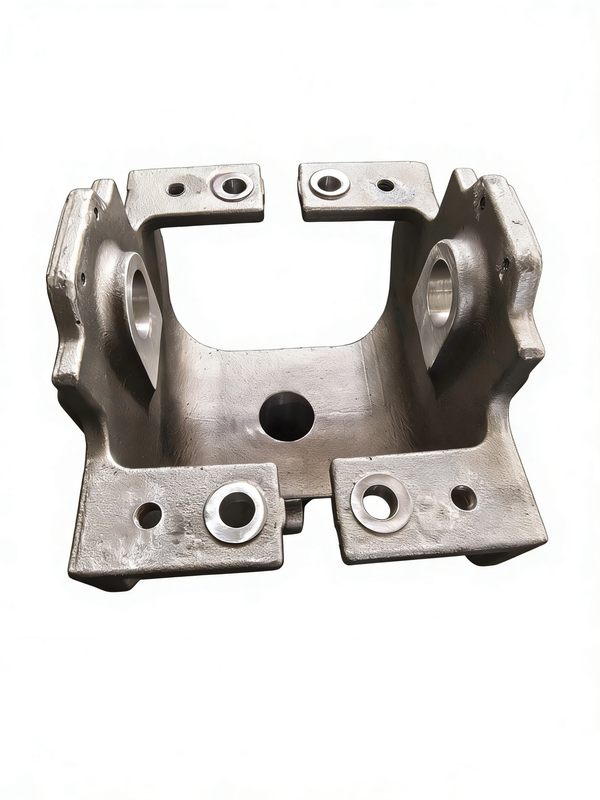

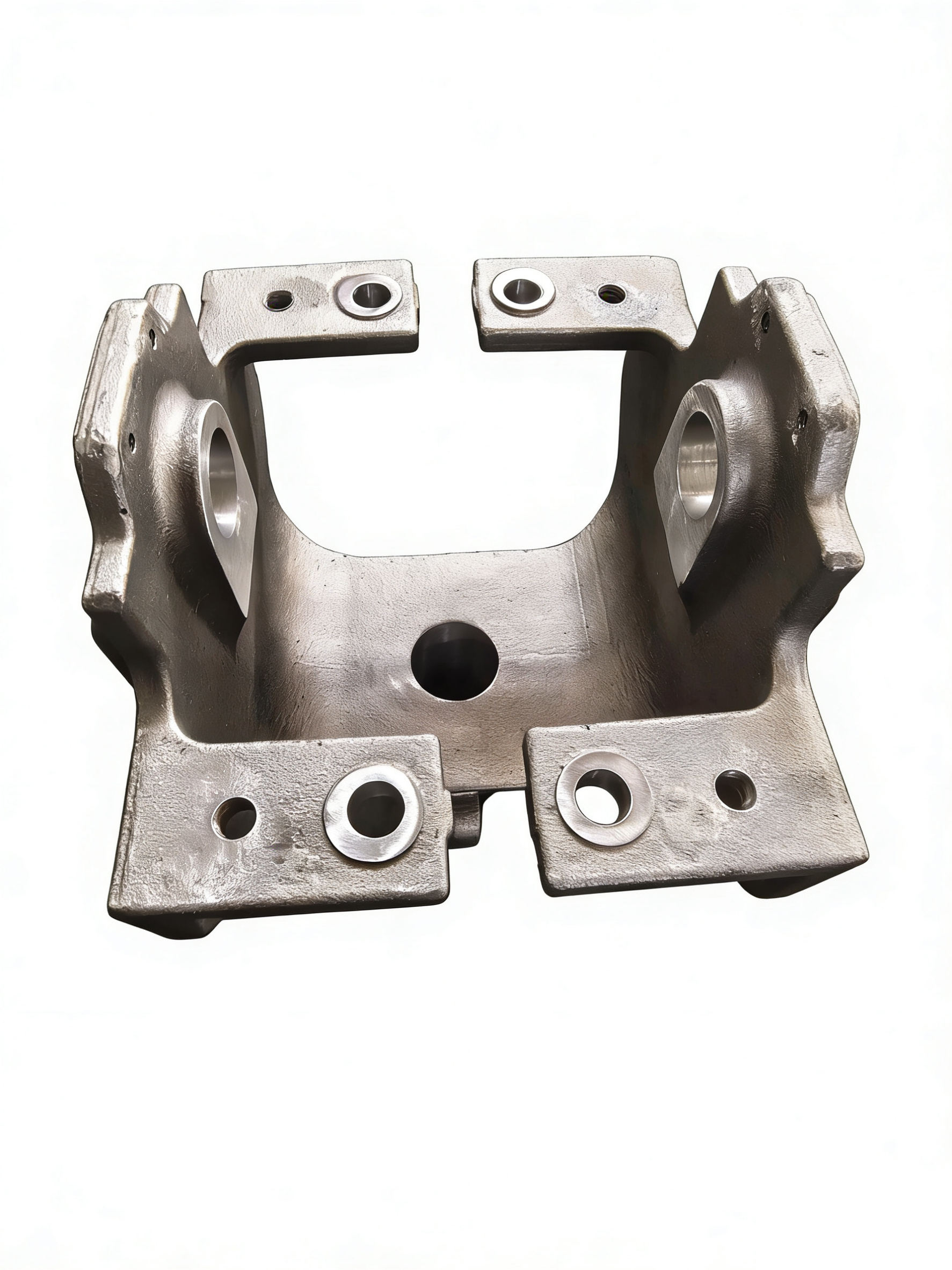

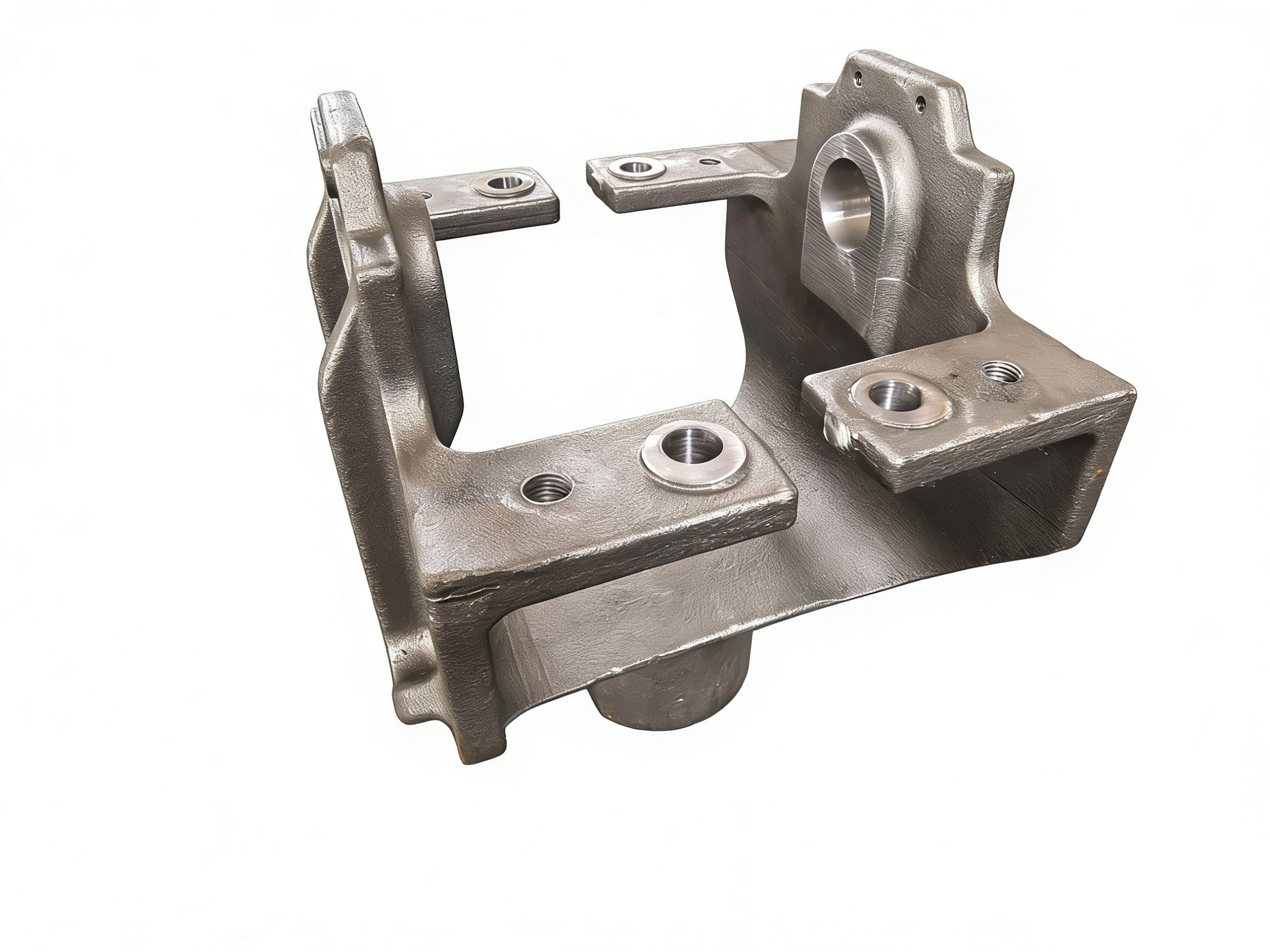

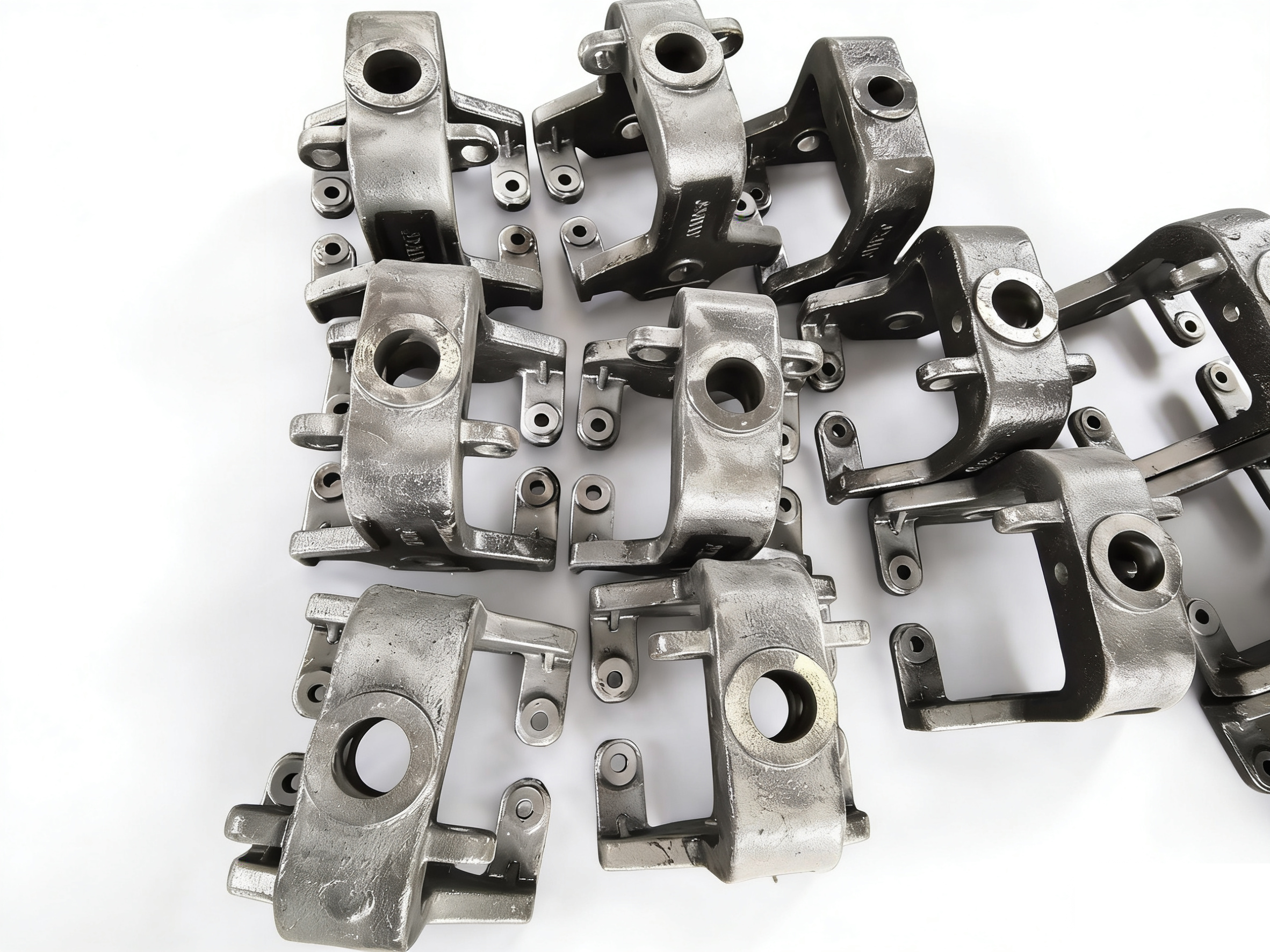

The steering bracket acts as the critical structural foundation within any demanding vehicular or mechanical steering system. Crafted through advanced hot die forging techniques, this component transcends standard casting alternatives by delivering a dense, uninterrupted metallic grain structure. When integrated into an automotive chassis or heavy-duty agricultural machinery, it absorbs and dissipates immense torsional forces, ensuring that steering inputs remain sharp, responsive, and secure under extreme dynamic loads. The tactile finish of the metal, achieved through meticulous shot blasting and precision CNC machining, speaks to its premium engineering. Every contour and mounting surface is refined to guarantee a flawless integration into your existing assembly lines. By focusing on raw material excellence and rigorous dimensional control, this forged bracket eliminates the common failure points associated with continuous vibration and heavy impacts, safeguarding the operational lifespan of the entire steering mechanism. Whether navigating rugged off-road terrains or enduring the high-mileage demands of commercial transit, this component stands as a testament to superior metallurgical craftsmanship.
Specification Category | Technical Details |
|---|---|
Product Name | Forged Steering Bracket |
Forming Process | Hot Die Forging + Shot Blasting/Sandblasting + CNC Precision Machining |
Available Materials | Carbon steel (45#), Alloy steel (40Cr, 42CrMo, 4130/4140 chrome-molybdenum), Stainless steel, etc. (Customizable according to customer drawings) |
Precision Control | Dimensional tolerance of mounting holes and reference surfaces ≤ ±0.05mm |
Surface Roughness | Ra3.2 ~ Ra1.6 |
Surface Treatment | Shot Blasting/Sandblasting, Black ED coat, Powder coat, Clear zinc plating |
Structural Features | Continuous forging flow line, dense metal structure, optional welded rib, optional greasable design |
Quality Inspection | Support providing Material certificate, Heat treatment report, Non-destructive testing (NDT) report |
Application Fields | Passenger cars and commercial vehicles steering system support components, Chassis mounting brackets for aut |
Intelligent component design goes far beyond raw physical strength; it encompasses the entire operational lifecycle of the part. Our engineering team integrates smart, functional structural features that enhance both the ultimate yield strength and the long-term serviceability of the steering bracket. These optimizations directly translate to lower maintenance overhead and extended operational uptime for the final machinery.
Welded Rib Enhancements: Optional reinforcing ribs can be strategically integrated into identified high-stress zones, exponentially increasing rigidity without a massive weight penalty.
Greasable Design Integration: Engineered with precise internal lubrication channels and grease zerk fittings to allow for effortless, routine maintenance of moving joints.
Extended Component Life: By facilitating regular, deep lubrication, the friction at critical pivot points is minimized, drastically extending the lifespan of connected linkages.
Lower Total Cost of Ownership: Simplified, accessible maintenance routines significantly reduce costly downtime for commercial fleet operators and heavy equipment users.
In the high-stakes realm of automotive and heavy machinery manufacturing, operational safety is entirely non-negotiable. We back our forged steering brackets with a transparent, data-driven quality control protocol that guarantees compliance with the strictest international safety regulations. Every shipment is accompanied by verifiable data, providing absolute peace of mind for your procurement and engineering departments.
Comprehensive Material Traceability: Every production batch is accompanied by a detailed material certificate, verifying the exact chemical composition of the steel alloy used.
Verified Heat Treatment: Documented heat treatment reports ensure the steel has achieved the precise targeted hardness, yield, and tensile strength required for the application.
Non-Destructive Testing (NDT): Advanced ultrasonic and magnetic particle inspections guarantee the absolute absence of internal micro-cracks, voids, or hidden surface flaws.
Regulatory Alignment: Meticulously designed and laboratory-tested to meet or exceed the rigorous safety and performance standards required for modern vehicle steering systems.
No two vehicle architectures or mechanical platforms are identical. Recognizing the highly unique demands of modern design, particularly in the rapidly evolving new energy vehicle sector, we offer comprehensive engineering support and highly flexible manufacturing capabilities. Our facility acts as an extension of your own R&D department, turning complex concepts into tangible, high-performance realities.
Seamless Drawing Translation: We readily accept and accurately translate complex 2D blueprints and 3D CAD models into flawless, production-ready physical prototypes.
Tailored Material Selection: Collaborate directly with our in-house metallurgists to select the exact alloy grade that perfectly balances your specific strength requirements and budget.
Rapid Prototyping: Accelerate your product development cycle with our streamlined tooling creation and expedited sample production processes.
Scalable Production: From specialized, low-volume agricultural equipment runs to massive commercial automotive orders, our manufacturing facilities adapt seamlessly to your volume.
Partnering with a dedicated, highly specialized manufacturer for your critical steering components ensures a streamlined, reliable supply chain and uncompromising product integrity. We are deeply committed to empowering your production lines with parts that embody true engineering excellence. Our holistic approach to manufacturing removes the friction from global procurement.
Decades of Forging Expertise: Deep-rooted, practical knowledge in thermo-mechanical processing guarantees superior metallurgical outcomes for every bracket produced.
State-of-the-Art Machining Centers: Continuous investments in advanced multi-axis CNC technology ensure flawless, repeatable precision across thousands of identical units.
End-to-End Solutions: Providing a comprehensive service umbrella from initial design consultation and die creation to final surface finishing and robust logistics.
Unwavering Quality Commitment: An independent, dedicated quality assurance team that treats every single bracket as a life-critical component, ensuring zero defects.
Hot die forging subjects the heated steel alloy to immense, controlled mechanical pressure. This process effectively eliminates any internal microscopic voids or porosity found in cast parts. Furthermore, it aligns the metallic grain structure to follow the exact contours of the bracket, creating a continuous flow line that drastically improves the component's natural resistance to impact, shear forces, and long-term metal fatigue.
Absolutely. While our standard precision control strictly maintains tolerances of ≤ ±0.05mm, our advanced multi-axis CNC machining centers can be programmed to meet even tighter, micro-level specifications. We work directly from your proprietary 2D or 3D engineering drawings to ensure the final product perfectly matches your unique architectural requirements without the need for secondary machining.
We believe in complete transparency and traceability. We supply a comprehensive suite of quality assurance documents with our shipments. This typically includes full material certificates detailing the chemical composition, detailed heat treatment reports verifying hardness and tensile strength, and Non-Destructive Testing (NDT) results to guarantee the absence of internal flaws.
For agricultural and construction machinery that is constantly exposed to highly abrasive environments, mud, and chemical fertilizers, we highly recommend our industrial powder coating or black ED (Electro-Deposition) coating. Both options provide an exceptionally robust, chip-resistant barrier that significantly delays oxidative corrosion and extends the visual and structural life of the bracket.
Yes, our engineering team frequently modifies existing standard designs to include functional enhancements. We can precisely drill and tap lubrication channels and integrate threaded ports for grease zerk fittings. This specific structural optimization is highly effective in allowing end-users to maintain the equipment, thereby drastically extending the service life of mating ball joints and moving parts.
