Forming Process: Hot Die Forging / Ring Rolling + Shot Blasting + CNC Precision Machining
Available Materials: Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to drawings
Performance Advantages: Dense metal structure, continuous forging flow line, high compressive strength, impact resistance, no internal porosity, long service life
Customization Service: Support customizing inner diameter, outer diameter, height and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report
Flange rings and shaft sleeves for mechanical equipment
Bearing rings and load-bearing rings for construction machinery
Petrochemical and energy pipeline connection rings
Custom ring forgings for various industrial scenarios
Engineered to withstand the most punishing industrial environments, our seamless rolled rings represent the absolute pinnacle of metallurgical craftsmanship. When you handle these forgings, the exceptional density and flawless surface finish immediately convey their structural superiority. The manufacturing process meticulously aligns the internal grain flow to perfectly match the circular contour of the ring, creating an impenetrable metallic matrix that actively resists fatigue, sheer stress, and heavy impacts. Unlike conventional cast alternatives that often harbor hidden voids or microscopic structural weaknesses, our hot die forging technique ensures absolute internal solidity. This translates directly into unparalleled operational safety and reliability for your most critical heavy-duty applications.
By optimizing the near-net shape during the initial rolling phase, we drastically reduce raw material waste and subsequent machining requirements, directly improving your project's overall cost-efficiency. The tactile smoothness of the precision-ground surfaces, combined with the reassuring heft of solid, void-free steel, reflects a steadfast commitment to uncompromising quality. Whether deployed in deep-sea petrochemical pipelines subjected to immense pressures, or high-altitude aerospace engines enduring extreme temperature fluctuations, these forgings deliver consistent, unyielding performance. They are purposely built to eliminate costly operational downtime and frequent maintenance cycles, empowering your engineering projects to achieve maximum efficiency, safety, and longevity.
Specification Category | Details & Parameters |
|---|---|

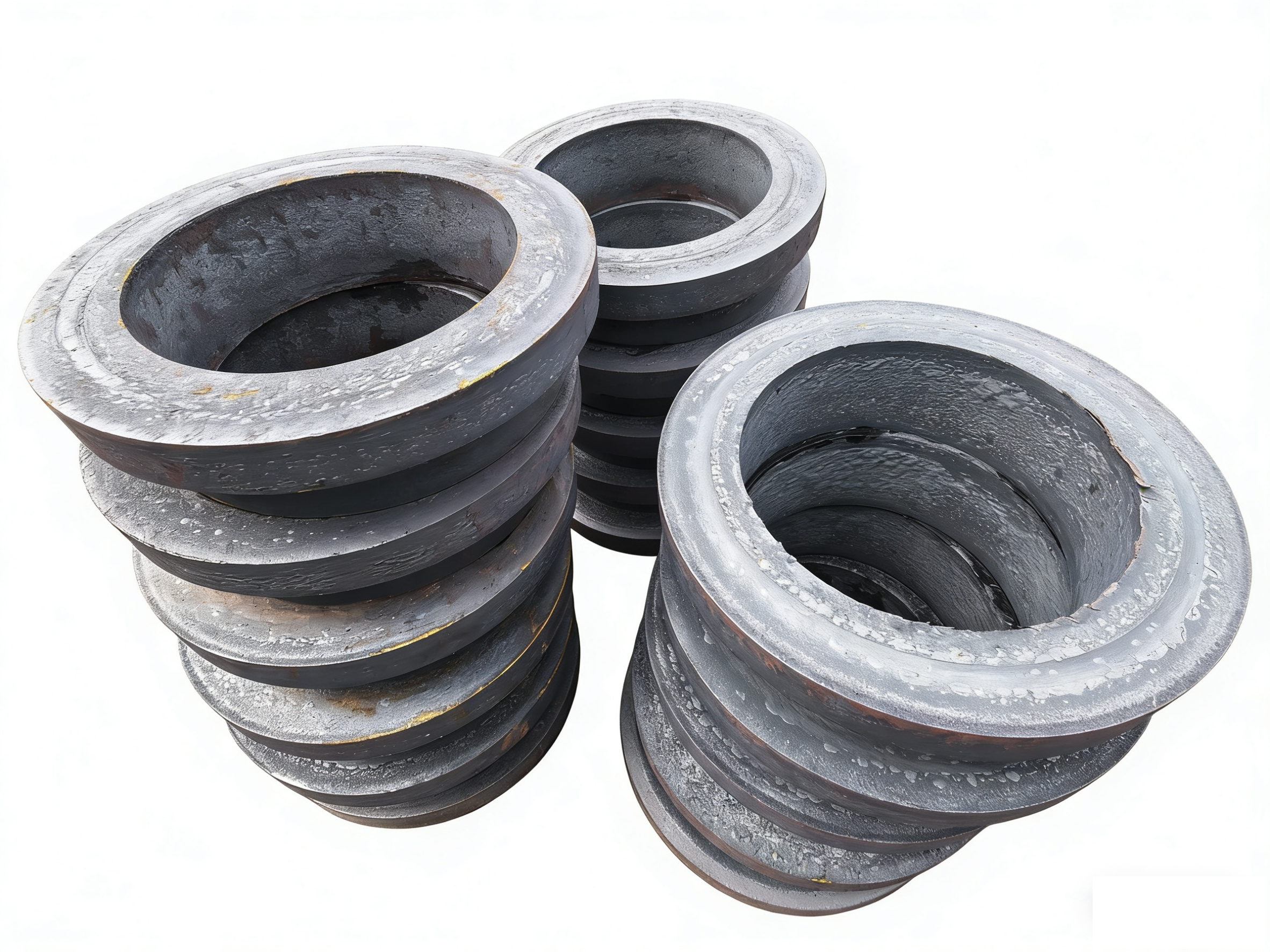

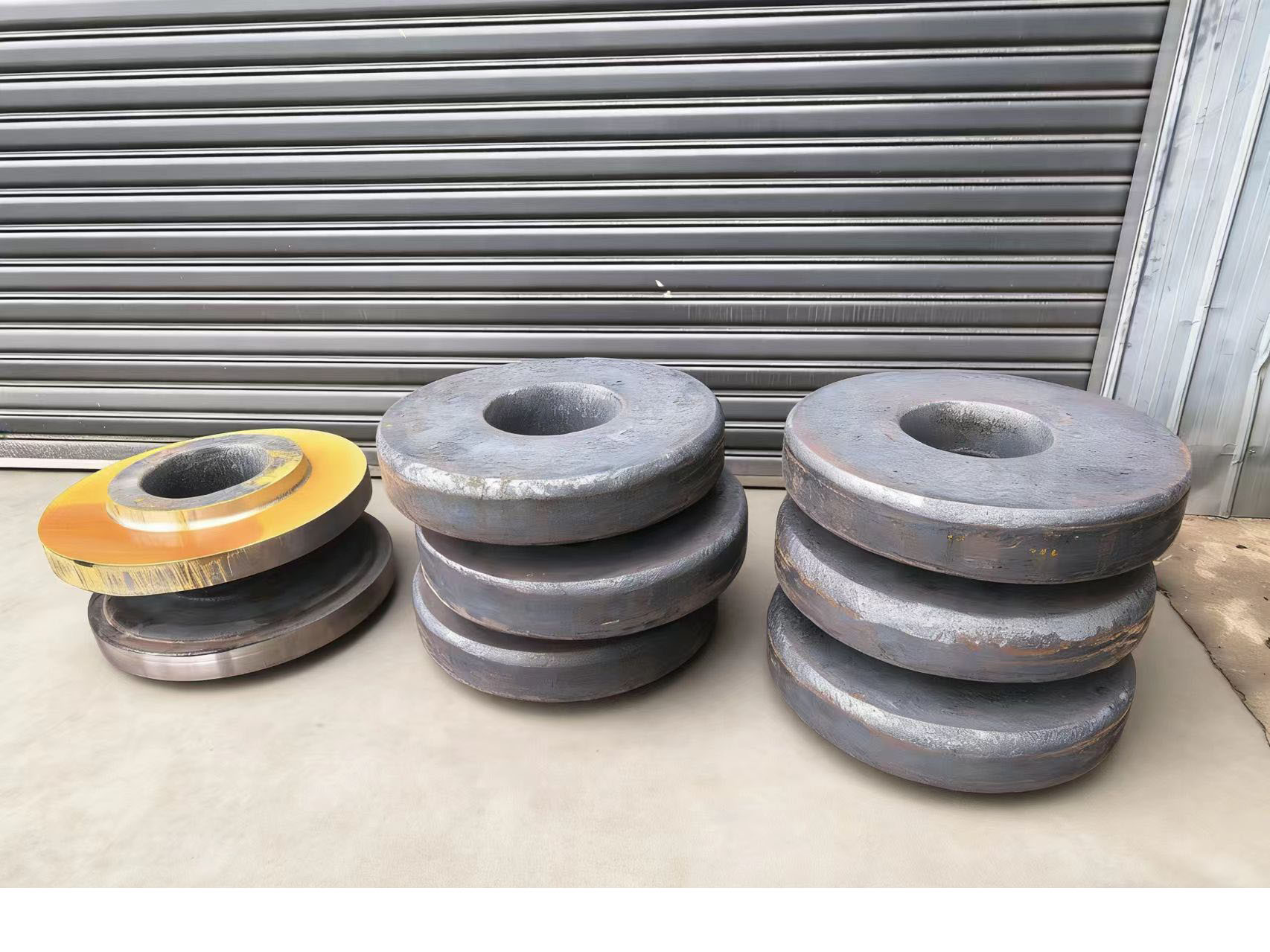

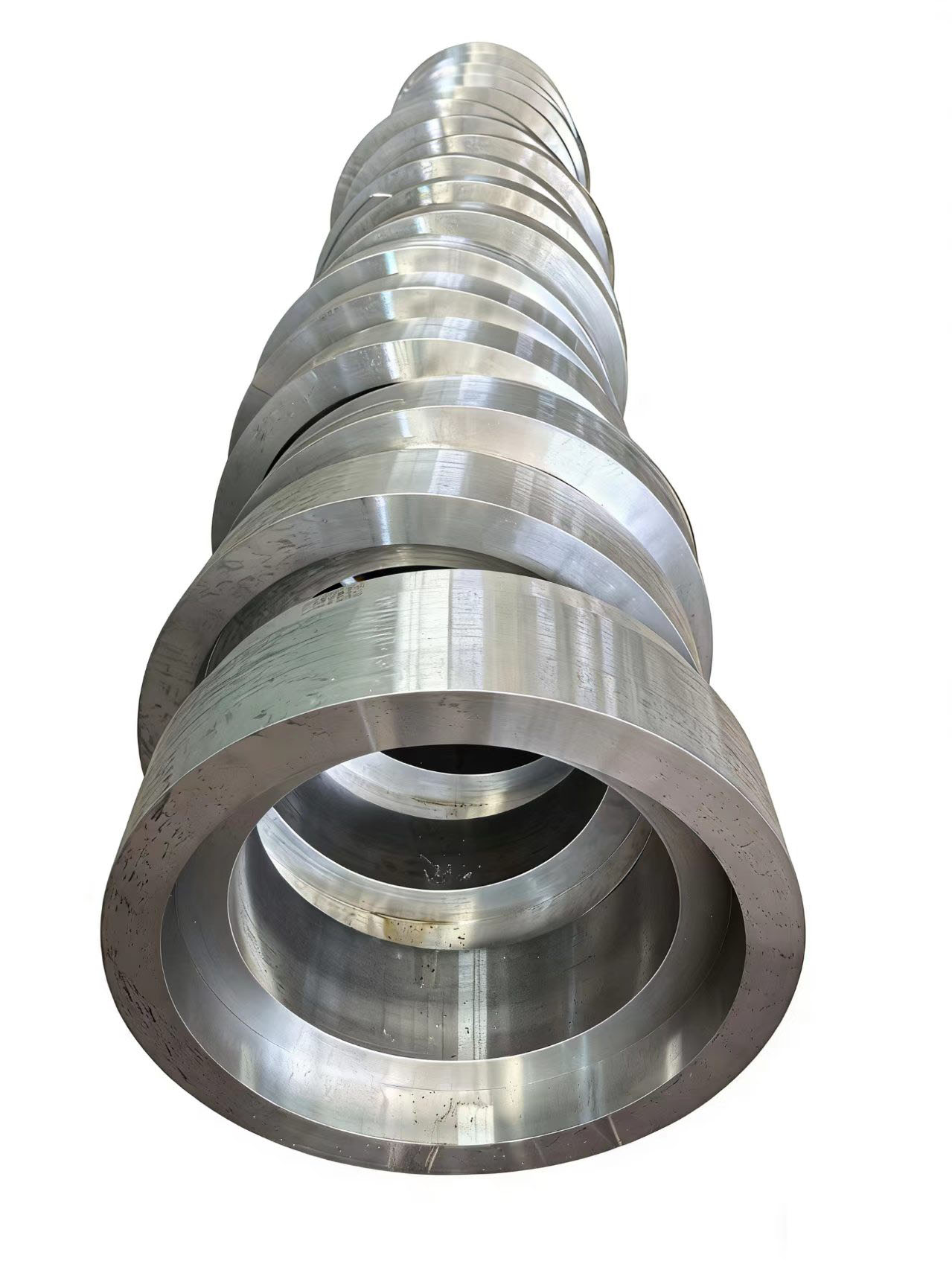

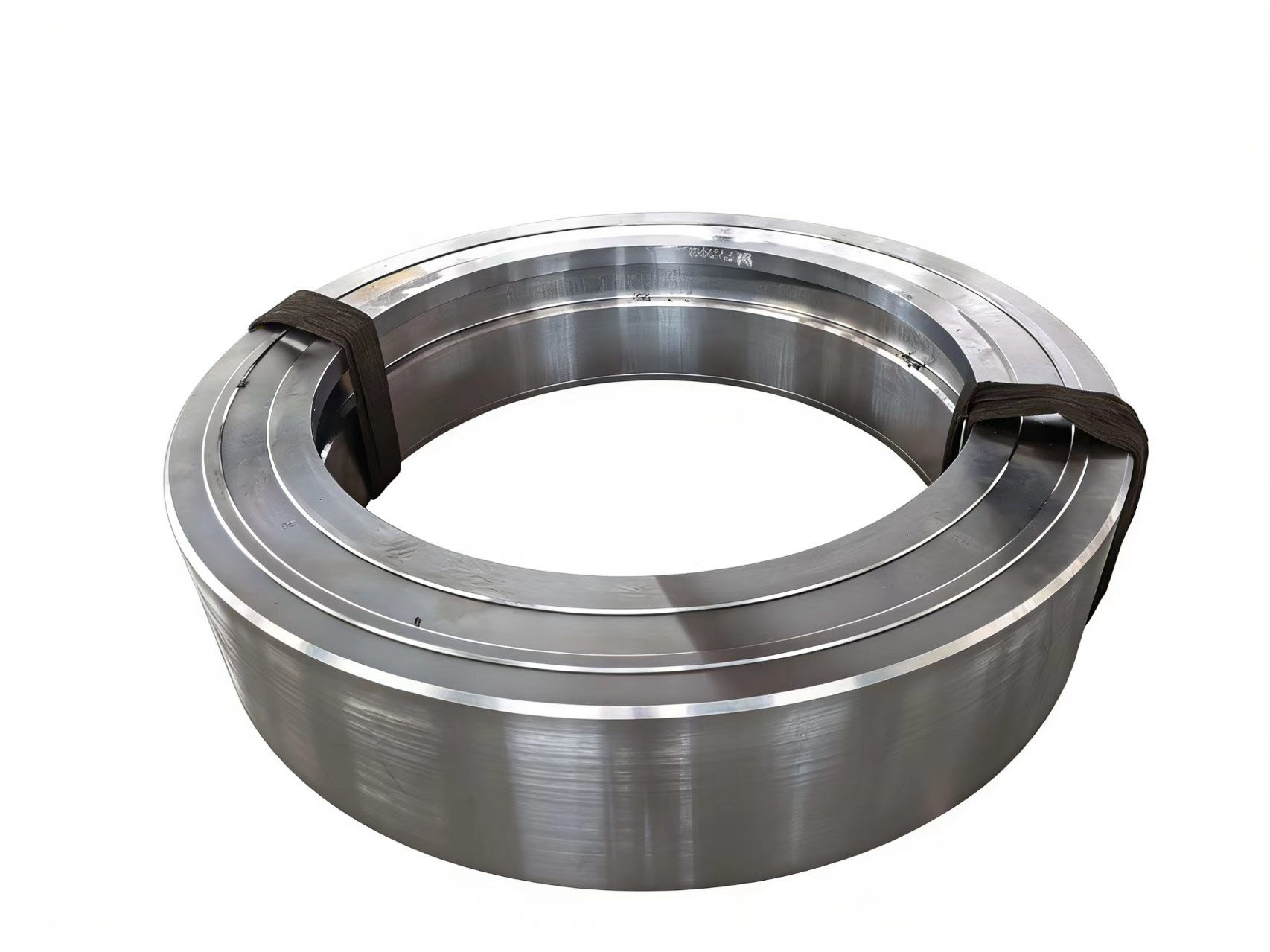

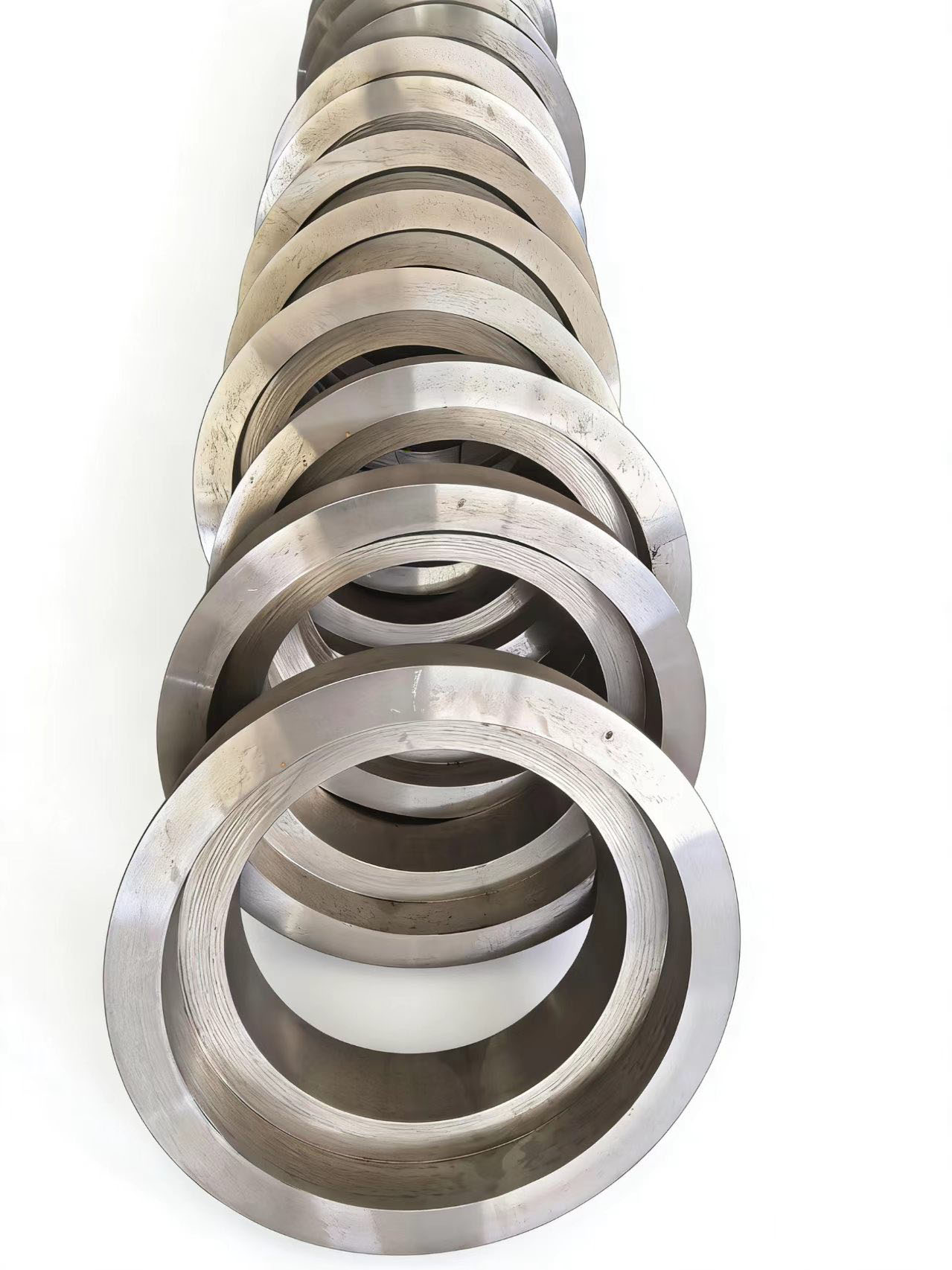

Product Name | Ring Forgings / Seamless Rolled Rings |
Forming Process | Hot Die Forging / Seamless Ring Rolling + Shot Blasting + CNC Precision Machining |
Available Materials | Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, Titanium, Aluminum, Superalloys (Customizable per drawings) |
Dimensions (OD/ID/Height) | Custom non-standard per 2D/3D drawings (Large/heavy forgings supported) |
Mechanical Properties | Dense metal structure, continuous grain flow, high compressive strength, impact resistance, no internal porosity, high fatigue resistance |
Surface Treatment | Shot Blasting, Precision Ground, Galvanized/Powder Coated customized coatings |
Heat Treatment Process | Normalizing, Quenching, Tempering, Annealing, Solution treatment (Customized per material/performance) |
Quality Inspection & Certification | Full set of QC documents: Material certificate, Heat treatment report, NDT reports (Ultrasonic UT, Magnetic Particle MT, Penetrant PT) |
Application Fields | Flange rings & shaft sleeves for machinery, bearing/load-bearing rings for construction eq |
Sourcing critical mechanical components requires a manufacturing partner who deeply understands the profound impact of material integrity on your final product's success. We stand as that reliable supplier, effectively bridging the gap between raw metallurgical potential and precise engineering reality. Our entire production ecosystem is structured to mitigate your supply chain risks while simultaneously elevating your product quality.
End-to-End Manufacturing Control: From rigorous raw material inspection to final CNC turning and coating, every single phase is managed internally to guarantee unwavering consistency.
Cost-Effective Production: Our mastery of near-net shape forging techniques significantly minimizes raw material consumption, directly lowering your overall procurement expenses.
Transparent Quality Assurance: We provide exhaustive, transparent documentation, ensuring your engineering teams have the exact metallurgical and testing data required for strict industry compliance.
Scalable Production Agility: Whether your project requires a single, highly specialized prototype or a high-volume continuous supply schedule, our facility dynamically adapts to your production cadence.
Expert Technical Support: Our in-house metallurgical specialists collaborate directly with your design engineers to recommend the optimal alloys and thermal treatments for your specific operational challenges.
Seamless rolled ring forging aligns the internal grain structure of the metal to follow the exact circular shape of the component. This continuous grain flow yields significantly higher tensile strength, superior impact resistance, and enhanced fatigue life compared to castings, which often suffer from internal porosity, inconsistent density, and structural voids.
Absolutely. While the forging process creates the near-net shape, our in-house CNC precision machining centers finalize the component. We routinely achieve ultra-tight tolerances and exceptional concentricity, ensuring the rings are ready for immediate, frictionless assembly into your machinery without any need for secondary machining.
To guarantee absolute structural integrity, we conduct a comprehensive suite of NDT procedures. This includes Ultrasonic Testing (UT) to detect deep internal flaws, Magnetic Particle Testing (MT) for surface and near-surface discontinuities in ferromagnetic materials, and Penetrant Testing (PT) to reveal surface-breaking defects. Full reports are provided with your shipment.
We routinely work with specialized alloys tailored for severe conditions. If your application involves highly corrosive chemicals, extreme deep-sea pressures, or the intense heat of an aerospace engine, our metallurgical team will source and forge the exact grade of stainless steel, titanium, or superalloy specified in your engineering drawings, followed by the appropriate solution aging or tempering.
We maintain a fully transparent quality assurance process. With every delivery, you receive a comprehensive documentation packet that includes the raw Material Mill Certificate, detailed Heat Treatment Reports (including time/temperature charts if required), Dimensional Inspection Reports, and all applicable NDT certifications, ensuring full traceability for your compliance needs.
