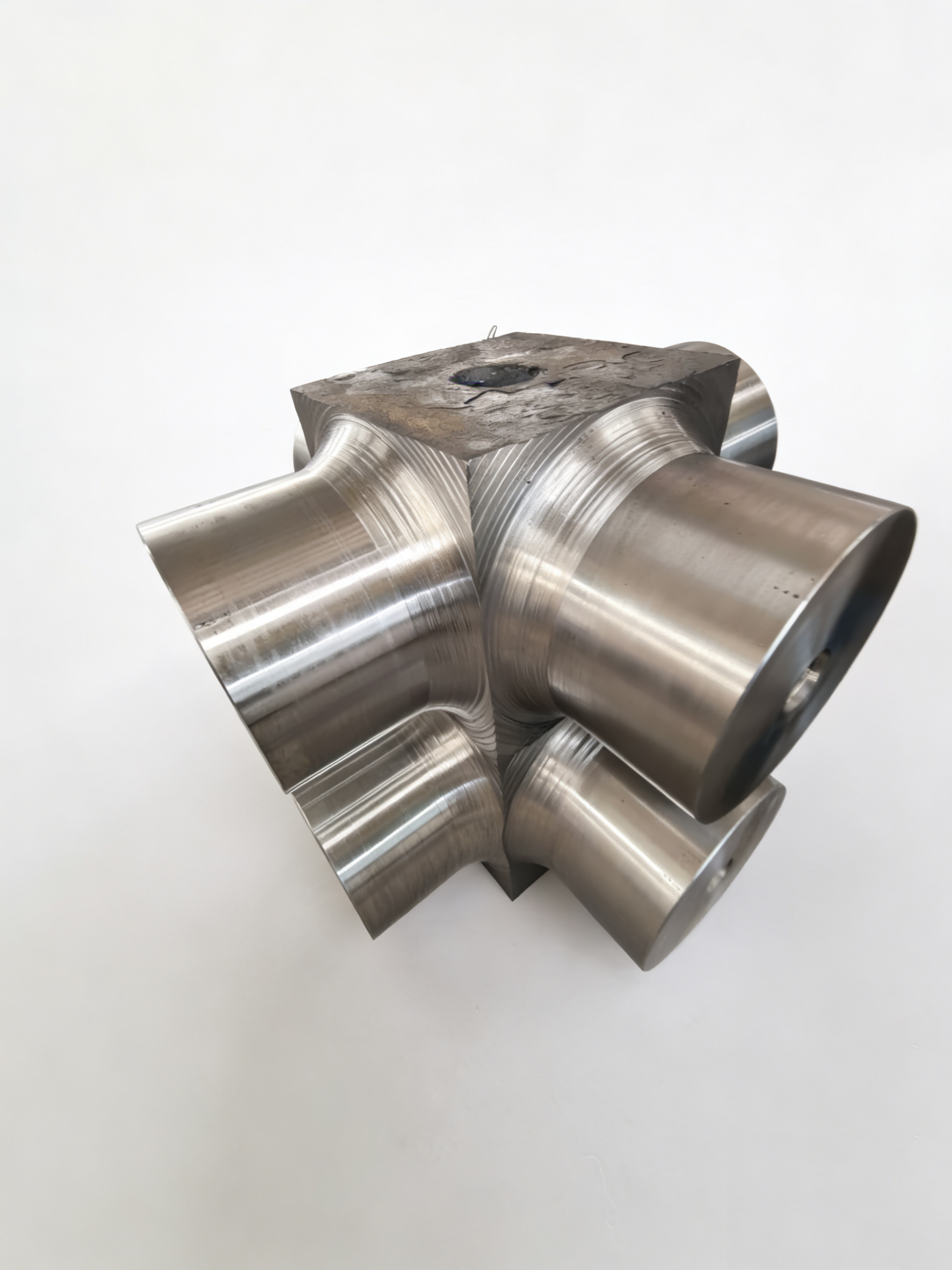

High Pressure Six-Way Valve Body Forging

Product Features

• Forming Process: Hot Die Forging + Shot Blasting/Sandblasting + CNC Precision Machining

• Available Materials: Carbon steel (45#), Alloy steel (40Cr, 42CrMo), Stainless steel, etc., customizable according to customer drawings

• Precision Control: Dimensional tolerance of interface ≤ ±0.05mm, surface roughness Ra3.2~Ra1.6, ensuring reliable sealing and stable fluid flow

• Performance Advantages: Dense metal structure, continuous forging flow line, excellent high pressure resistance, impact resistance and corrosion resistance, meeting the requirements of high-pressure hydraulic systems

• Customization Service: Support customizing dimensions, structure, internal flow channels and materials according to customer's 2D/3D drawings, and can provide a full set of quality inspection documents such as material certificate, heat treatment report and non-destructive testing report

Application Fields

• Hydraulic valve systems for construction machinery and mining equipment

• Fluid control components for petroleum, chemical and other industries

• Custom valve bodies for high-pressure hydraulic systems

• Various special-shaped hydraulic valve body forgings

Product Description

When handling fluid control in extreme industrial environments, the physical integrity of your components dictates the safety and efficiency of the entire operation. Grasping this custom six-way valve body forging, you immediately notice the substantial, dense weight characteristic of premium hot-die forged steel. Unlike standard cast alternatives, the exterior surface feels remarkably smooth to the touch, a direct result of meticulous CNC precision machining and refined shot blasting. The metallic sheen of the treated alloy reflects a flawless finish, completely free from any surface porosity, micro-fissures, or rough casting artifacts. When integrated into a heavy-duty hydraulic circuit, the component operates with a silent, steadfast reliability, effortlessly managing aggressive fluid dynamics without the slightest hint of vibration, structural flex, or pressure drop.

The engineering behind this valve body focuses entirely on eliminating the catastrophic risks associated with internal leaks and structural fatigue. By aligning the internal grain structure of the metal through advanced forging techniques, the component achieves extraordinary tensile strength and impact resistance. The precisely machined internal flow channels ensure that hydraulic oil glides through the system with minimal turbulence, maintaining optimal fluid velocity and reducing localized heat generation. Whether deployed in harsh underground mining operations or complex petrochemical processing plants, this valve body acts as the indestructible heart of your directional control systems, dramatically reducing maintenance intervals and safeguarding your critical infrastructure against unexpected downtime and hazardous fluid blowouts.

Product Specifications

Wide Adaptability & Cost Efficiency

Maximizing operational profitability requires components that deliver exceptional longevity while minimizing the total cost of ownership. This six-way valve body is designed to be a universal powerhouse, seamlessly integrating into a vast array of heavy-duty industrial applications. By drastically reducing the frequency of component failure and system downtime, it provides an immediate and measurable return on investment.

• Heavy Machinery Integration

Perfectly suited for the rigorous demands of excavators, loaders, and heavy mining equipment hydraulic systems operating in abrasive conditions.

• Petrochemical Compatibility

The highly resistant material options make it ideal for handling aggressive fluids and high pressures in refineries and chemical processing plants.

• Industrial Fluid Systems

Delivers reliable directional control in large-scale thermal management and automated manufacturing fluid networks.

• Maintenance Reduction

The robust, wear-resistant nature of the forged body extends maintenance intervals, freeing up valuable engineering resources and reducing labor costs.

• Optimized Lifecycle Costs

While delivering premium performance, the efficient manufacturing process and extended lifespan result in a highly competitive cost-per-hour of operation.

Why Choose Us

Selecting the right manufacturing partner is just as critical as selecting the right component. We bring decades of metallurgical expertise and precision machining capability to the table, positioning ourselves as a highly reliable supplier for demanding industrial sectors. Our commitment goes beyond simply delivering metal parts; we deliver engineered certainty and supply chain stability.

• Integrated Manufacturing Hub

By keeping forging, heat treatment, and precision machining entirely in-house, we maintain absolute control over product quality and delivery lead times.

• Uncompromising Quality Culture

Quality is engineered into the product at every single stage of development, not just inspected at the end of the production line.

• Responsive Technical Communication

Our engineering team speaks your language, ensuring that highly technical requirements are understood clearly and executed flawlessly.

• Reliable Supply Chain

We maintain robust raw material sourcing networks to ensure stable pricing and uninterrupted production schedules, regardless of market fluctuations.

• Proven Industry Track Record

Trusted by leading equipment manufacturers globally to provide critical fluid control components that perform exceptionally under pressure.

Frequently Asked Questions (FAQ)

To assist your engineering and procurement teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding our custom forged valve bodies.

• What specific advantages does hot die forging offer over traditional sand casting for this six-way valve body?

Hot die forging subjects the metal to immense pressure while heated, which eliminates internal porosity, voids, and shrinkage cavities common in castings. This process aligns the grain flow of the metal to the contours of the valve body, resulting in significantly higher tensile strength, superior fatigue resistance, and absolute reliability in high-pressure hydraulic applications.

• Can the internal flow channels be customized to prevent specific pressure drops in our proprietary system?

Yes. Utilizing advanced CNC multi-axis machining, we can precisely mill complex, custom internal flow geometries based on your 3D CAD models. This allows for optimized fluid dynamics, minimizing turbulence and localized pressure drops tailored exactly to your system's operational requirements.

• What documentation is provided to verify the material grade and structural integrity of the supplied forgings?

We supply a comprehensive suite of quality assurance documentation with every shipment. This includes certified material test reports detailing chemical composition and mechanical properties, detailed heat treatment charts, and certified results from non-destructive testing (such as ultrasonic or magnetic particle inspection) and hydrostatic pressure tests.

• How do you ensure the dimensional accuracy of the six interface ports for precise spool assembly?

Following the forging and heat treatment processes, the valve bodies are machined using state-of-the-art computer numerical control (CNC) centers. We maintain strict dimensional tolerances of ≤ ±0.05mm and a surface roughness of Ra3.2 to Ra1.6. Final dimensions are rigorously verified using high-precision Coordinate Measuring Machines (CMM).

• Are you capable of manufacturing these valve bodies in highly corrosion-resistant materials for offshore applications?

Absolutely. While carbon and standard alloy steels are common, we frequently manufacture these components using premium stainless steels (such as F316 and F304) and duplex stainless steels (like F51). These materials offer exceptional resistance to chloride-induced stress corrosion cracking, making them ideal for harsh offshore and petrochemical environments.
