| Quantity: | |
|---|---|
Forming Process: Hot Die Forging + Shot Blasting + CNC Precision Machining (Drilling)
Available Materials: Carbon steel (Q345R), Alloy steel (15CrMo, 16Mn), Stainless steel, etc., customizable according to drawings
Precision Control: Dimensional tolerance of flange holes and tube holes ≤ ±0.05mm, ensuring sealing reliability and heat exchange efficiency
Performance Advantages: Dense metal structure, continuous forging flow line, excellent high pressure resistance, corrosion resistance and fatigue resistance, meeting pressure vessel safety standards
Customization Service: Support customizing dimensions, hole arrangement, materials according to 2D/3D drawings, provide material certificate, heat treatment report, non-destructive testing report and other full set of quality documents
Heat exchanger and pressure vessel tube sheets
Petrochemical and energy industry heat exchange components
Perforated flange for fluid separation equipment
Custom tube sheet forging for various industrial heat exchange systems

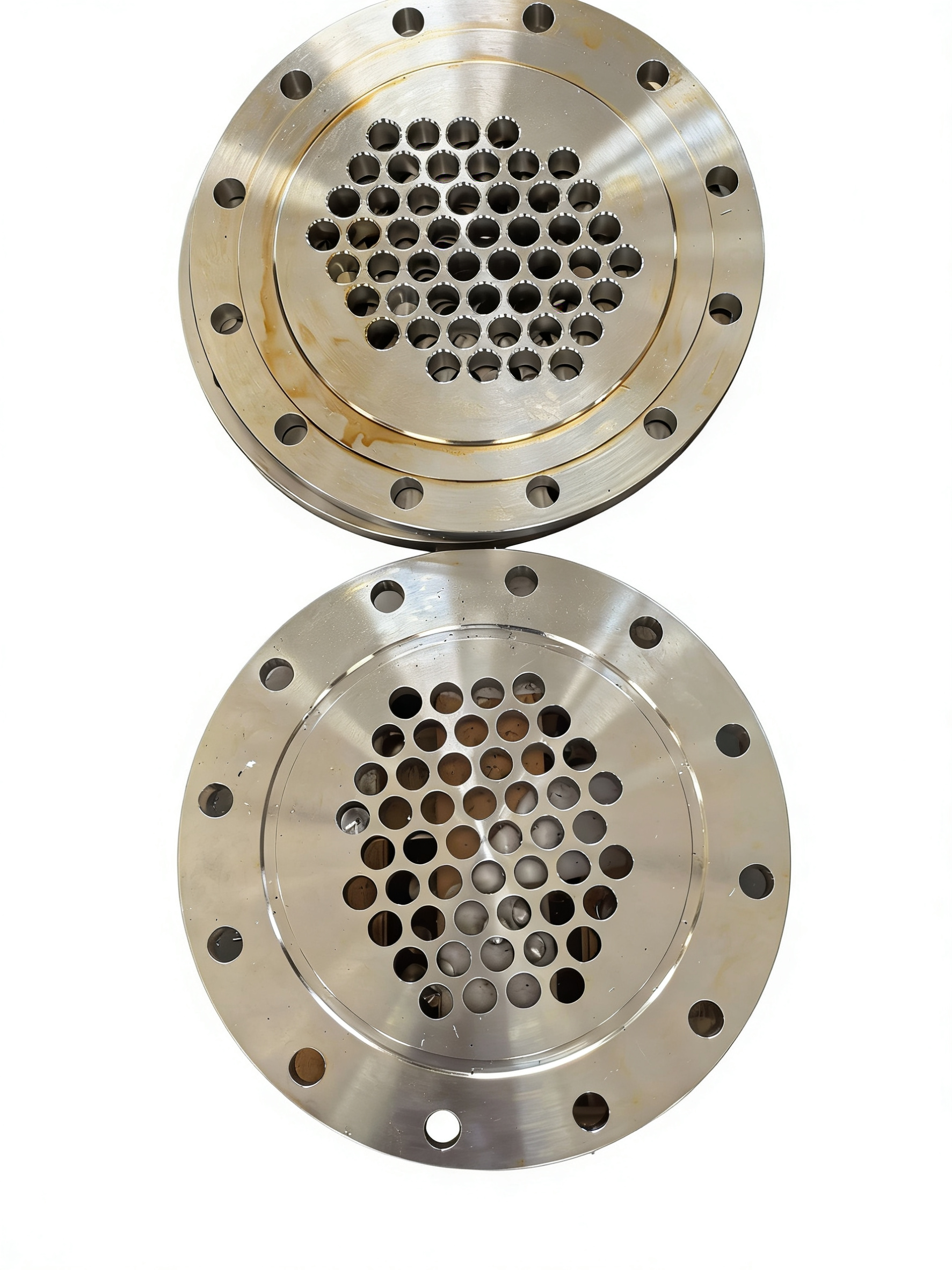

The integrity of any industrial thermal management system relies heavily on the core components that dictate fluid separation and pressure containment. Our custom heat exchanger tube sheet forging is meticulously engineered to serve as the impenetrable barrier and structural foundation within your critical equipment. Unlike conventional steel plates that often harbor hidden internal laminations and microscopic voids, our forged tube sheets undergo an intense hot die forging process. This transformative thermal and mechanical treatment refines the crystalline grain structure of the metal, creating a continuous, unbroken flow line that dramatically amplifies the material's inherent strength. When you run your hand across the machined surface, the flawless, mirror-like finish speaks to the rigorous CNC deep-hole drilling and milling processes it has endured. The resulting component delivers an unparalleled resistance to high-pressure fatigue, aggressive chemical corrosion, and extreme thermal cycling. By integrating these robust forgings into your pressure vessels or desalination units, you effectively eliminate the risk of catastrophic stress fractures and premature sealing failures. This translates directly to minimized maintenance downtime, prolonged equipment lifespan, and optimized heat exchange efficiency across your entire operation.
Product Name | Heat Exchanger Tube Sheet Forging |
|---|---|
Forming Process | Hot Die Forging + Shot Blasting + CNC Precision Machining (Deep hole drilling, milling) |
Available Materials | Carbon steel (Q345R, ASTM A105, A266), Alloy steel (15CrMo, 16Mn, ASTM A182 F11/F22), Stainless steel (ASTM A182 F304/L, F316/L, Duplex/Super Duplex), Titanium alloy, etc. |
Dimension Capabilities | Maximum Outer Diameter 3500mm, Maximum Thickness 600mm, Maximum Unit Weight 20 Tons |
Hole Arrangement | Triangular, Square, Staggered |
Precision Control | Flange hole and tube hole dimensional tolerance ≤ ±0.05mm |
Surface Roughness | Expansion connection Ra ≤ 12.5μm, Welding connection Ra ≤ 25μm |
Execution Standards | ASME, ASTM, EN, GB |
Performance Advantages | Dense metal structure, continuous forging flow line, elimination of internal laminations, excellent high pressure/corrosion/fatigue resistance |
Quality Inspection | Material certificate, heat treatment report, NDT report (UT/RT), chemical composition analysis, mechanical property test |
Application Fields | Heat exchanger and pressure vessel tube sheets, petrochemical and energy heat exchange components, |
Trust in critical infrastructure components is built on verifiable data. Our comprehensive quality assurance protocols ensure that every tube sheet leaving our facility is structurally flawless and ready for immediate, safe deployment.
Internal Defect Scanning: Every forging undergoes rigorous Ultrasonic Testing (UT) and Radiographic Testing (RT) to peer deep inside the metal, guaranteeing absolute zero internal voids, cracks, or inclusions.
Chemical Composition Verification: Advanced spectrometry confirms that the elemental makeup of the raw material perfectly matches your required specifications, ensuring predictable performance in corrosive environments.
Mechanical Property Validation: Destructive testing on sacrificial test blocks verifies tensile strength, yield strength, and impact toughness, proving the material's capability to withstand extreme operational stresses.
Complete Traceability: We empower your procurement and engineering teams with a full suite of documentation, including material certificates, heat treatment charts, and NDT reports, ensuring a transparent and risk-free acquisition process.
Industrial mega-projects require manufacturing partners capable of scaling up without sacrificing precision. Our heavy-duty forging presses and expansive machining envelopes are purpose-built for massive infrastructure demands.
Massive Dimensional Capacities: We routinely forge and machine colossal tube sheets with outer diameters reaching up to 3500mm and thicknesses up to 600mm, accommodating the largest industrial pressure vessels.
Heavyweight Handling: With the capacity to produce single-piece forgings weighing up to 20 tons, we eliminate the need for multi-piece welded assemblies, preserving the structural integrity of massive heat exchange units.
Advanced Cladding Solutions: For applications requiring extreme surface protection without the cost of solid exotic alloys, we offer specialized Weld Overlay and Explosion Cladding techniques, seamlessly bonding corrosion-resistant layers to robust carbon steel bases.
Bespoke Engineering Translation: Our technical teams seamlessly convert your complex 2D and 3D CAD models into precise manufacturing reality, ensuring that every custom dimension, groove, and flange profile is executed flawlessly.
The interface between the tube sheet, the tubes, and the vessel shell is the most vulnerable point in any heat exchanger. We engineer our surface finishes to guarantee an impenetrable, long-lasting seal that prevents hazardous leaks.
Optimized Roughness Profiles: We meticulously control the surface roughness within the tube holes. For expansion joint connections, we achieve Ra ≤ 12.5μm for maximum mechanical grip, while welding connections are prepped to Ra ≤ 25μm for optimal weld pool fusion.
Precision Sealing Grooves: Flange edges and gasket seating surfaces are machined with absolute concentricity and flatness, ensuring that gaskets compress evenly and maintain a leak-proof barrier under extreme pressure fluctuations.
Enhanced Surface Hardness: Through controlled shot blasting and specialized heat treatments, the external surfaces achieve an optimal hardness that resists scratching and deformation during heavy-duty handling and assembly.
Corrosion-Resistant Finishes: The refined, smooth surfaces minimize microscopic crevices where corrosive agents can accumulate, drastically reducing the risk of localized pitting and extending the operational life of the entire thermal system.
Selecting the right manufacturing partner for critical pressure vessel components is a decision that impacts the safety and efficiency of your entire operation. We deliver unmatched technical expertise and reliable execution for your most demanding projects.
End-to-End Manufacturing Control: From raw billet selection and hot die forging to CNC deep-hole drilling and final NDT inspection, we control every phase of production in-house, ensuring zero compromises on quality.
Engineering Consultation: Our team of metallurgical and mechanical experts collaborates directly with your engineers, offering material selection advice and design optimization to enhance the performance of your heat exchange systems.
Strict Delivery Adherence: We understand that project delays cost money. Our streamlined production management and robust supply chain ensure that even the most complex, large-scale forgings are delivered strictly on schedule.
Uncompromising Safety Standards: By adhering to the most stringent international pressure vessel codes, we provide components that protect your workforce, your facility, and your operational reputation.
Below are answers to common technical inquiries regarding our heat exchanger tube sheet forgings. If you have specific project requirements, our engineering team is ready to assist.
Hot die forging compresses the metal at extreme temperatures, refining the grain structure and creating continuous flow lines. This eliminates the internal laminations and porosity often found in rolled plates, resulting in significantly higher fatigue resistance and preventing catastrophic failure under high-pressure cycling.
Absolutely. Our advanced CNC machining centers can precisely execute any custom configuration, including high-density Triangular, easily cleanable Square, or complex Staggered layouts, maintaining a strict tolerance of ≤ ±0.05mm across thousands of holes.
Every tube sheet undergoes comprehensive Ultrasonic Testing (UT) to detect deep internal flaws, and Radiographic Testing (RT) where applicable. We provide full NDT reports to certify that the component is entirely free of microscopic voids or cracks.
Yes. To balance extreme corrosion resistance with structural strength and cost-efficiency, we offer specialized Weld Overlay and Explosion Cladding services. This process bonds premium materials like Titanium or Super Duplex stainless steel onto a robust carbon steel or alloy base.
We supply a complete, traceable quality dossier with every shipment. This includes the raw material certificate, detailed heat treatment charts, dimensional inspection logs, chemical composition analysis, mechanical property test results, and all certified NDT reports.
